Fig. 2
From: Glacigenic sedimentation pulses triggered post-glacial gas hydrate dissociation

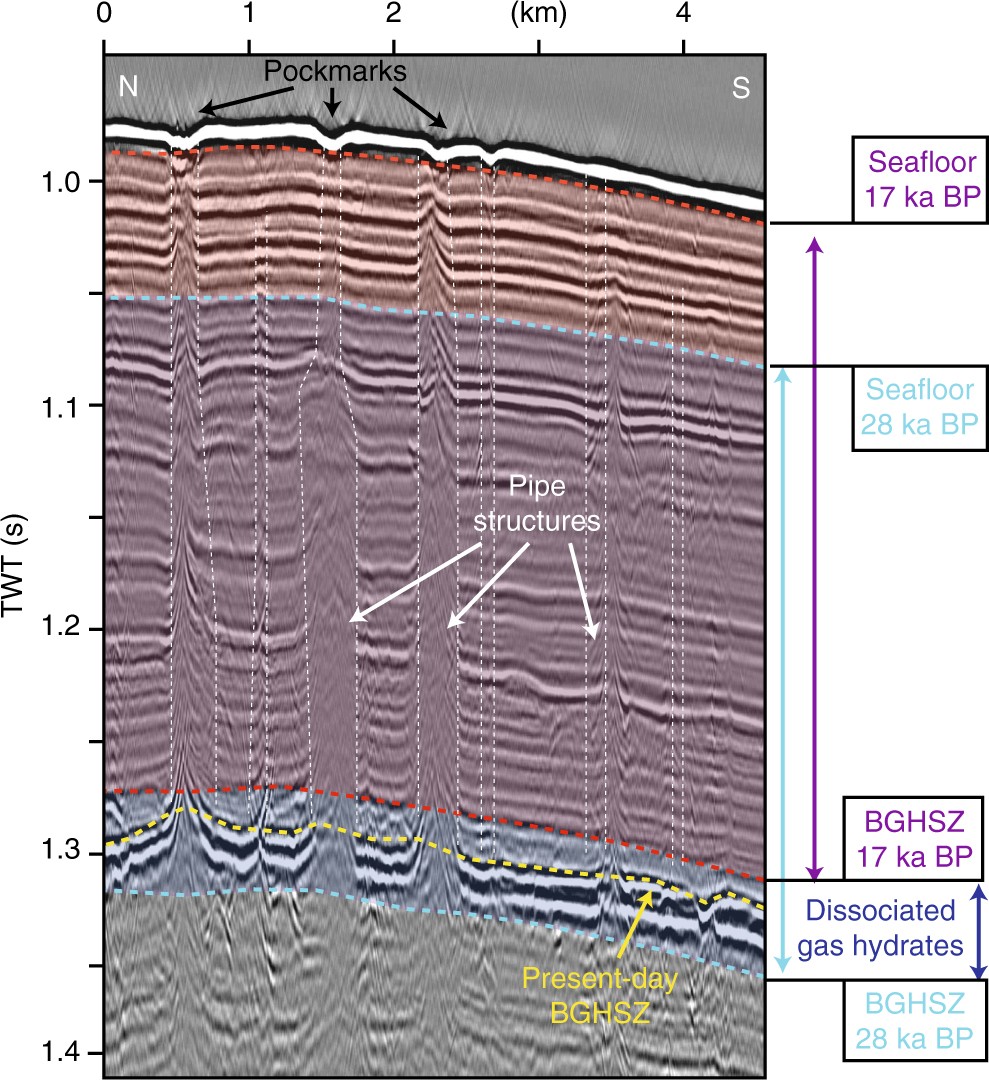

Pockmarks and pipe structures at Nyegga. Seismic profile with pipe structures, pockmarks, the present-day base of the gas hydrate stability zone (yellow) and calculated bases of the gas hydrate stability zone at 17 ka BP (blue) and 28 ka BP (red)
