From: In situ atomic-scale observation of oxidation and decomposition processes in nanocrystalline alloys

Fig. 2

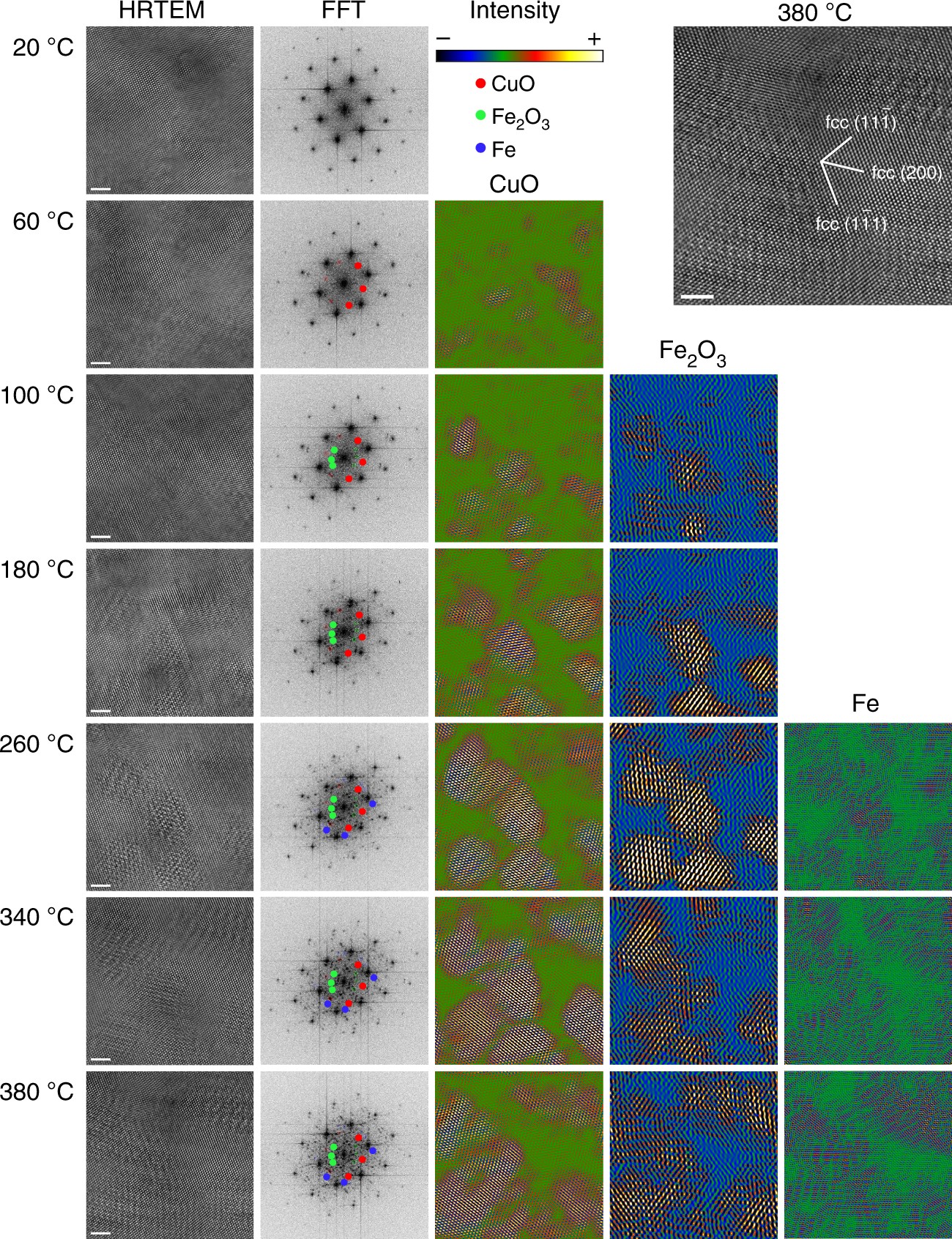

HRTEM images and corresponding distributions of oxides and Fe precipitates for in situ heated samples. The first column shows the HRTEM images recorded during in situ sample heating. The second column shows the FFT calculations of the corresponding HRTEM images recorded at different temperatures. The third to fifth columns display the distributions of oxides and Fe precipitates by IFFT. The HRTEM image recorded at 380 °C is enlarged and inserted at the top-right corner. The scale bars in HRTEM images are 2 nm
