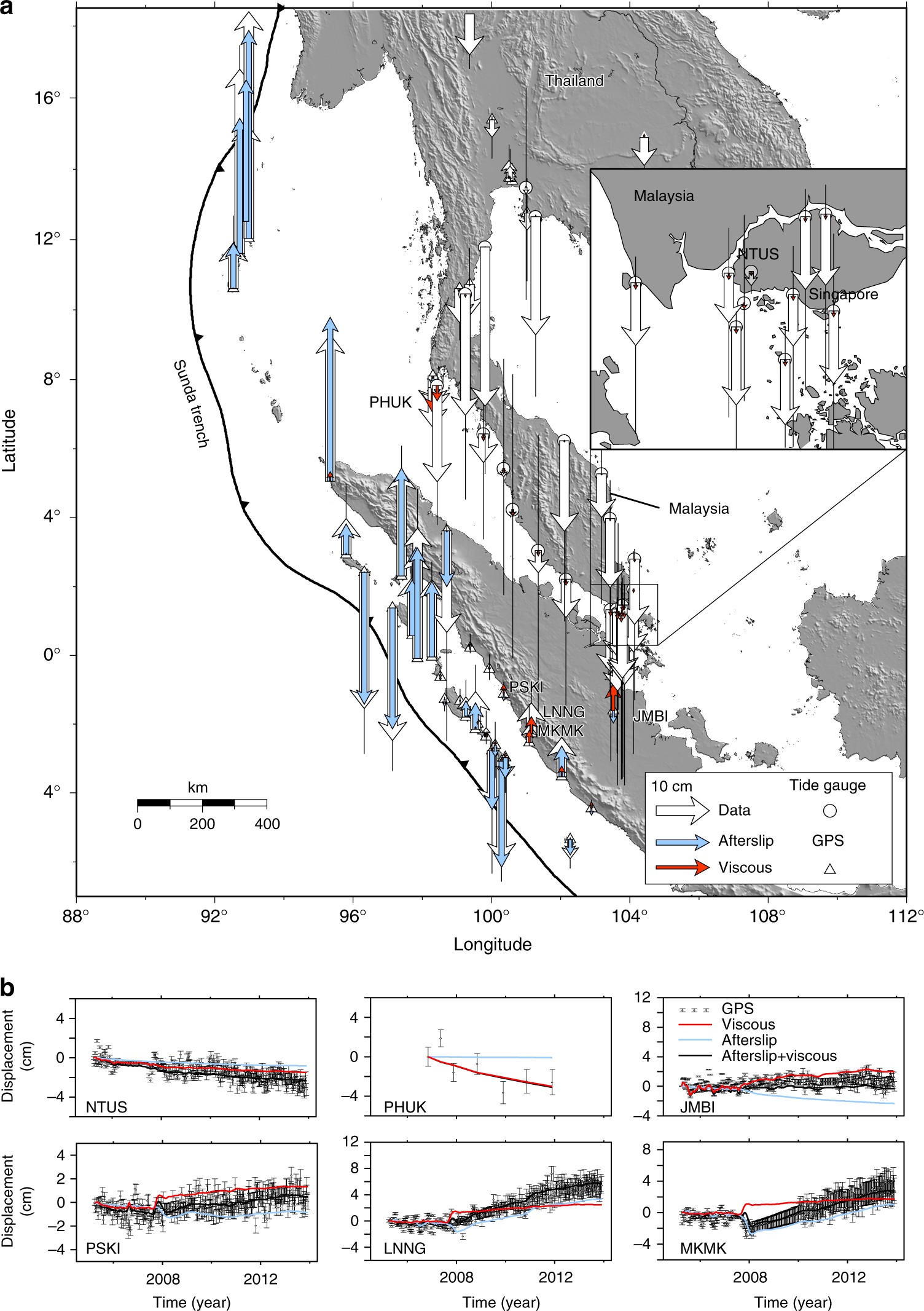

Fig. 4
From: Transient rheology of the Sumatran mantle wedge revealed by a decade of great earthquakes
Our estimated cumulative displacements for the vertical component of the mechanical decomposition of afterslip and viscoelastic flow at all geodetic stations over the whole-time period from 2005 to 2014. a White vectors represent the cumulative vertical displacements at GPS stations, and tide gauges with 1σ error bars. Light blue vectors show the cumulative vertical displacements due to afterslip on the megathrust. Red vectors indicate the cumulative vertical displacements from viscoelastic flow in the mantle wedge. Sample stations (with names are labelled in the map) where the viscoelastic flow contributes significantly to the displacement are shown in more detailed time series. b Red, blue, black curves and black dots represent the viscoelastic flow, afterslip prediction, combination of afterslip and viscoelastic flow and vertical displacement with 1σ error bars, respectively. Due to the large variation of the tide gauge time series, we plot the cumulative displacements from least-squares fits, for the full time series of GPS and original tide gauges are shown in the Supplementary Figures 4 and 5
