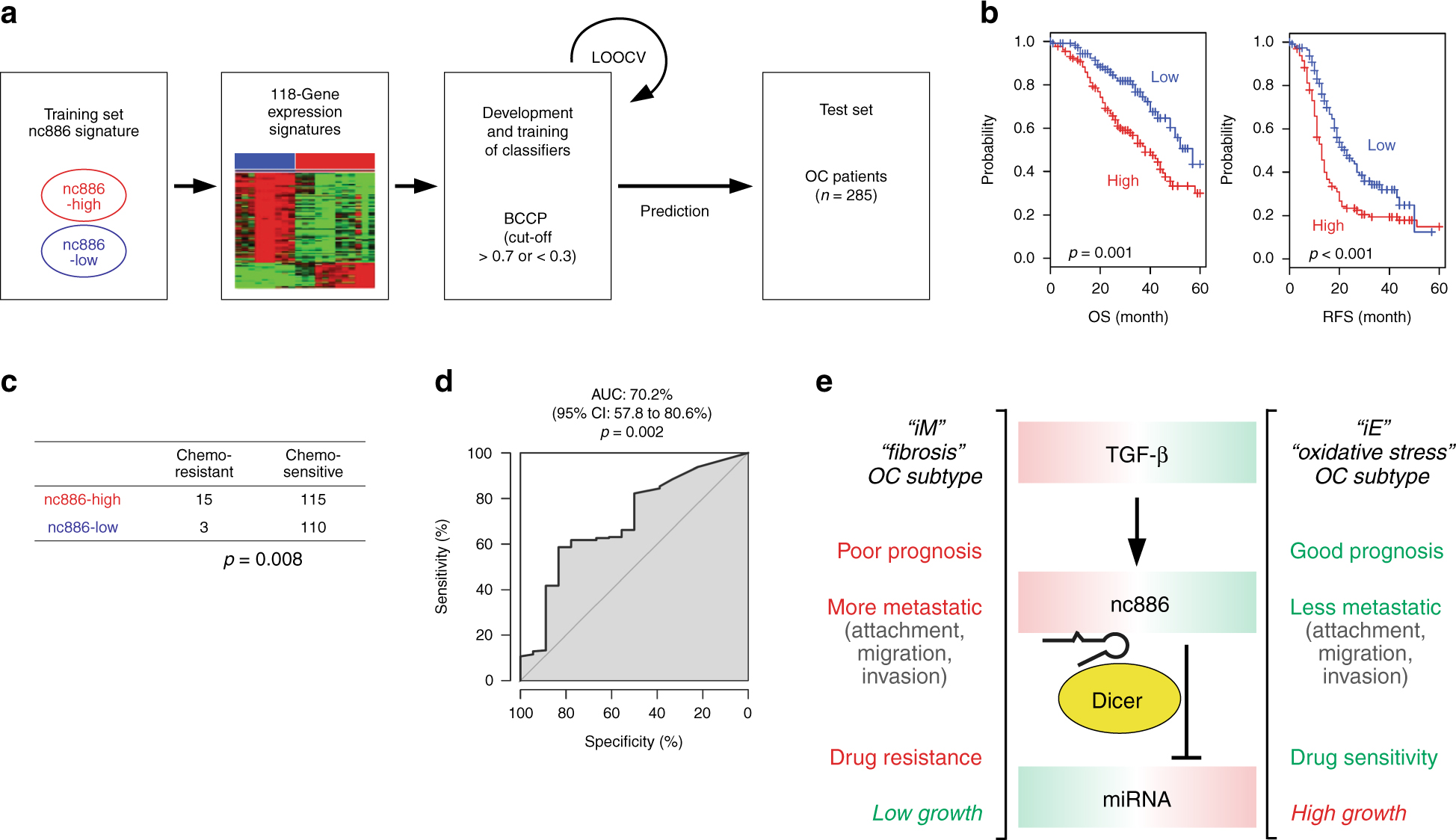

Fig. 7

nc886 association with poor clinical outcome and a summary model. a A schematic overview of the parameters of the prediction model. BCCP Bayesian Compound Covariate Predictor, LOOCV leave-one-out cross-validation. The cutoff of Bayesian probability: nc886 high >0.7 or nc886 low <0.3. b Kaplan–Meier plots of overall survival (OS) and recurrence-free survival (RFS). A total of 285 patients were stratified into 2 groups, as predicted by the BCCP algorithm. P values were generated by the log-rank test. The + symbols in the panel indicate censored data. c A matrix table showing drug sensitivity of the two groups of OC patients. Of the 285 patients, 243 were included in this analysis by excluding patients with undetermined subtypes (n = 33) and those without available chemotherapy data (n = 9). P values were determined by χ² test. d ROC analyses for the discriminatory value of the nc886 signature in OC patients treated with chemotherapy. Bayesian probability of nc886 signature was used to identify patients who are resistant to chemotherapy. AUC area under the curve, CI confidential interval. e A summary model. Red and green letters denote pro- and anti-tumorigenic features respectively. Bold highlighted are the features proven to be regulated by nc886 in this study
