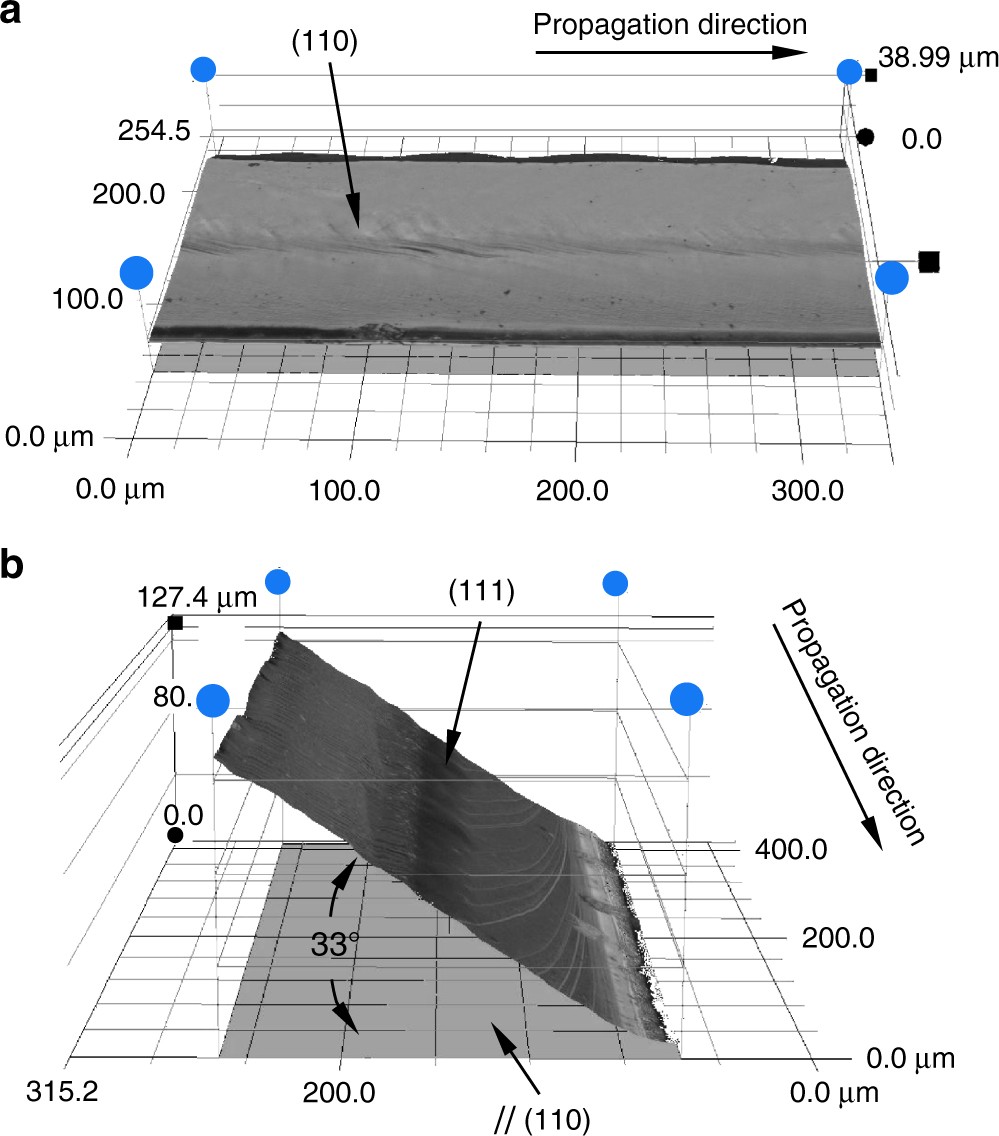

Fig. 2
From: Velocity correlated crack front and surface marks in single crystalline silicon
Crack surface topography for the fast crack that propagated at 3600 m/s. a Primary crack that initiates from the pre-crack. b Secondary crack after deviating underneath the punch roller
