From: Numerical simulations of a kilometre-thick Arctic ice shelf consistent with ice grounding observations

Fig. 6The alternative text for this image may have been generated using AI.

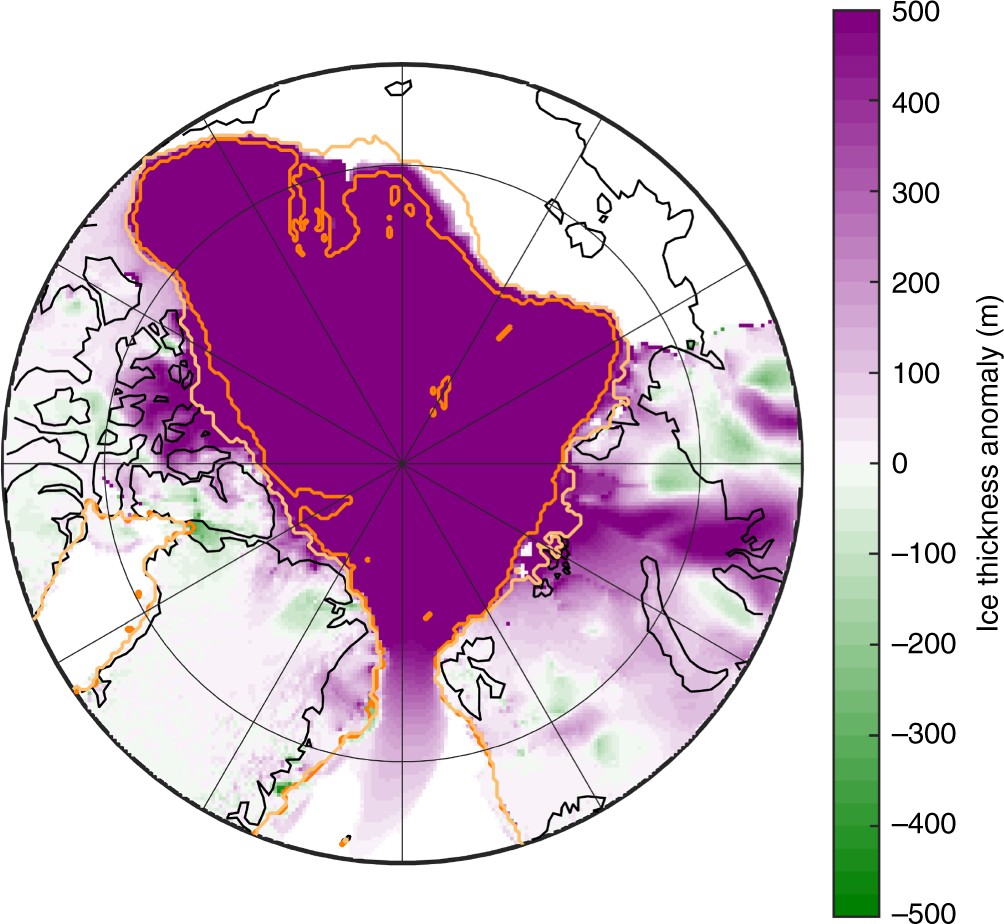

Impact of an Arctic ice shelf on grounding line position and grounded ice thickness. As simulation shown in Fig. 3b, showing thickness difference relative to a simulation without an Arctic ice shelf. Light orange line shows grounding line position in absence of an Arctic ice shelf, dark orange line is grounding line with an Arctic ice shelf. Note thickening of the terrestrial ice sheets, in particular in ice stream locations
