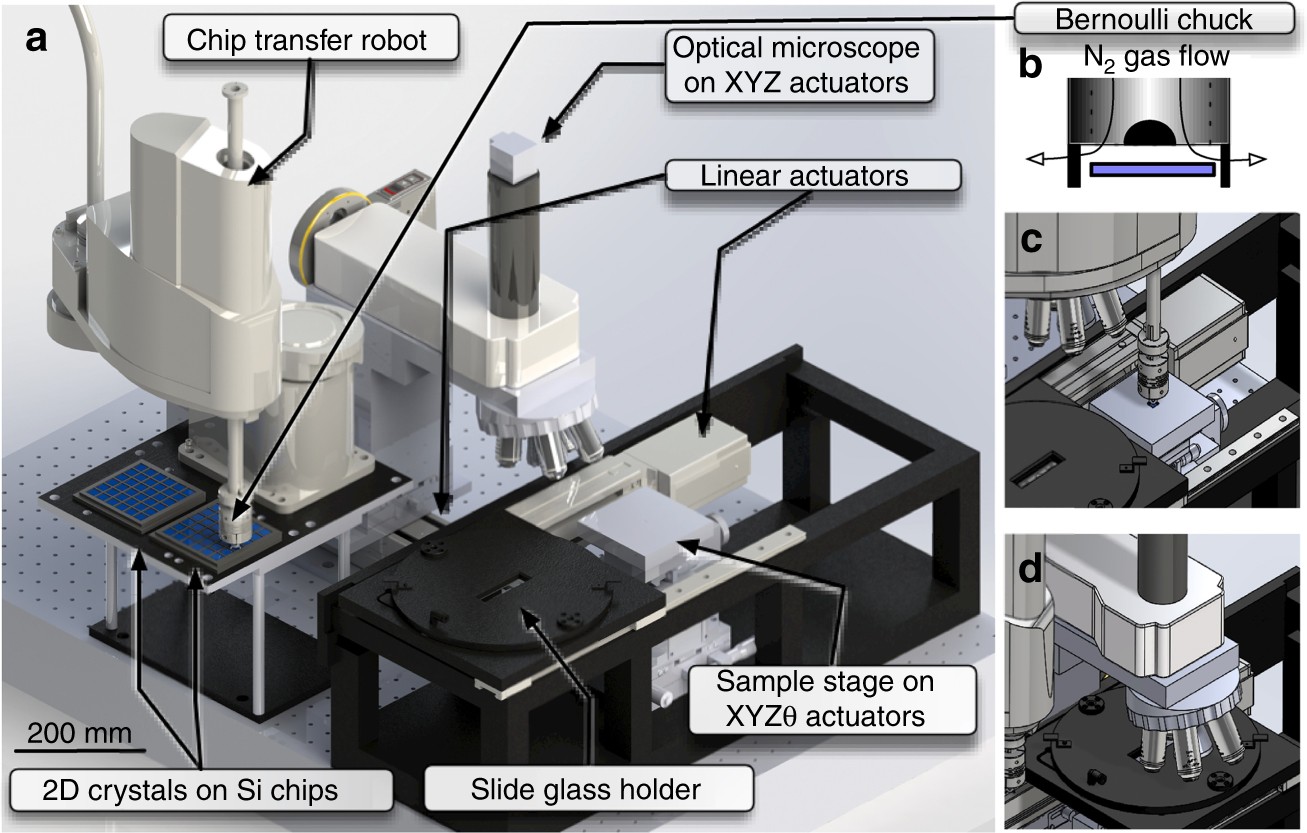

Fig. 6
The automated stamping system. a Schematic of automated stamping system. b Schematics of robot arm end effector; Bernoulli-type floating chuck. c, d Schematics of the automated stamping procedure: transferring SiO2/Si chips by robotic arm and setting optical microscope, respectively
