From: Constant strain accumulation rate between major earthquakes on the North Anatolian Fault

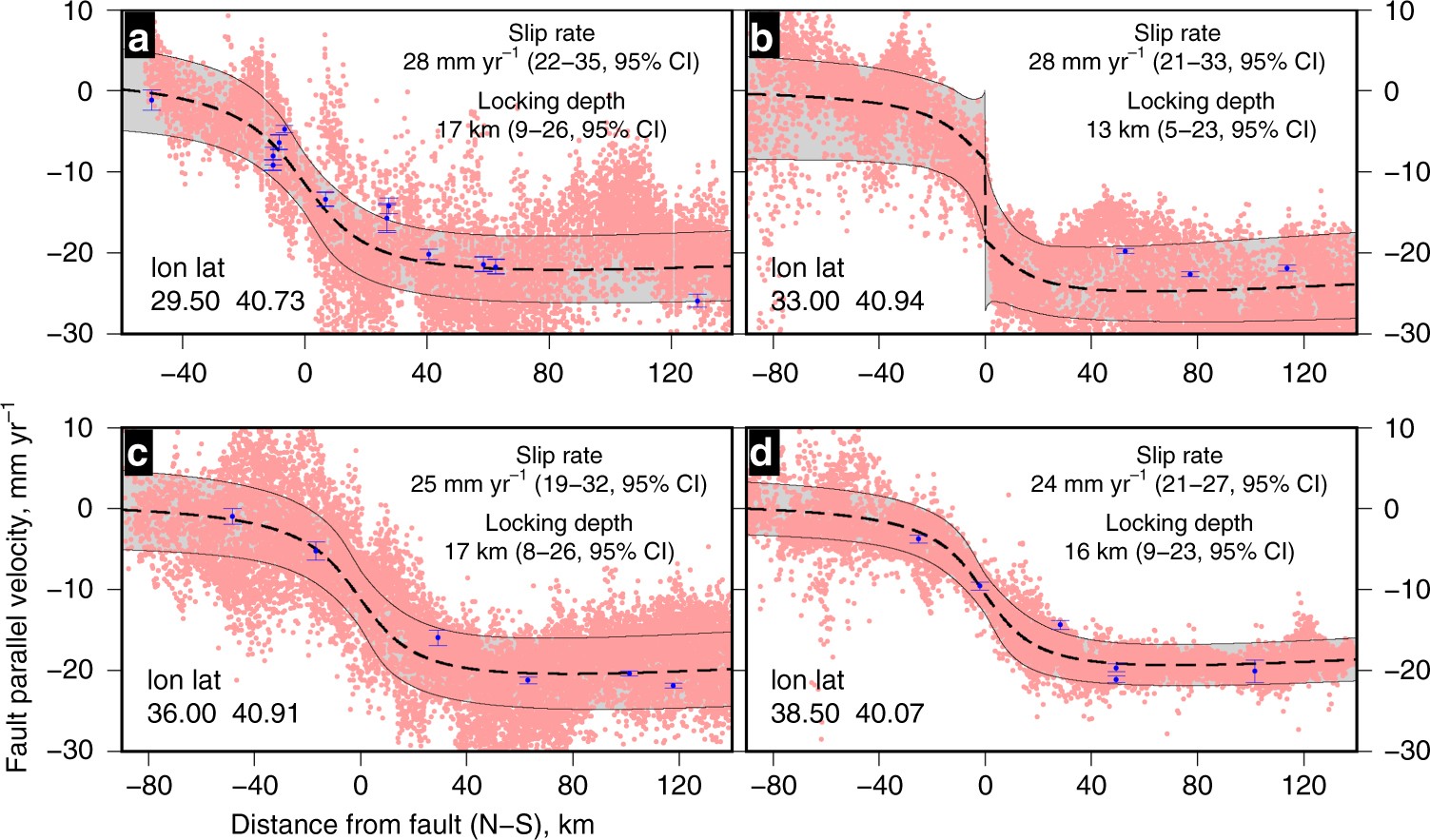

Estimating fault parameters from velocity profiles. A selection of profiles (a–d) used to estimate the fault slip rate and locking depth (red points in Fig. 3) along the North Anatolian Fault. All 22 profiles are shown in Supplementary Fig. 6. The red points are the fault parallel component of the horizontal velocity field projected from within 25 km perpendicular distance onto each profile. The blue points are the fault parallel component of the GNSS velocities. The black dashed line is our maximum a posteriori probability (MAP) solution with the grey shaded area representing the 95% confidence interval
