From: Quantitative characterization of all single amino acid variants of a viral capsid-based drug delivery vehicle

Fig. 3

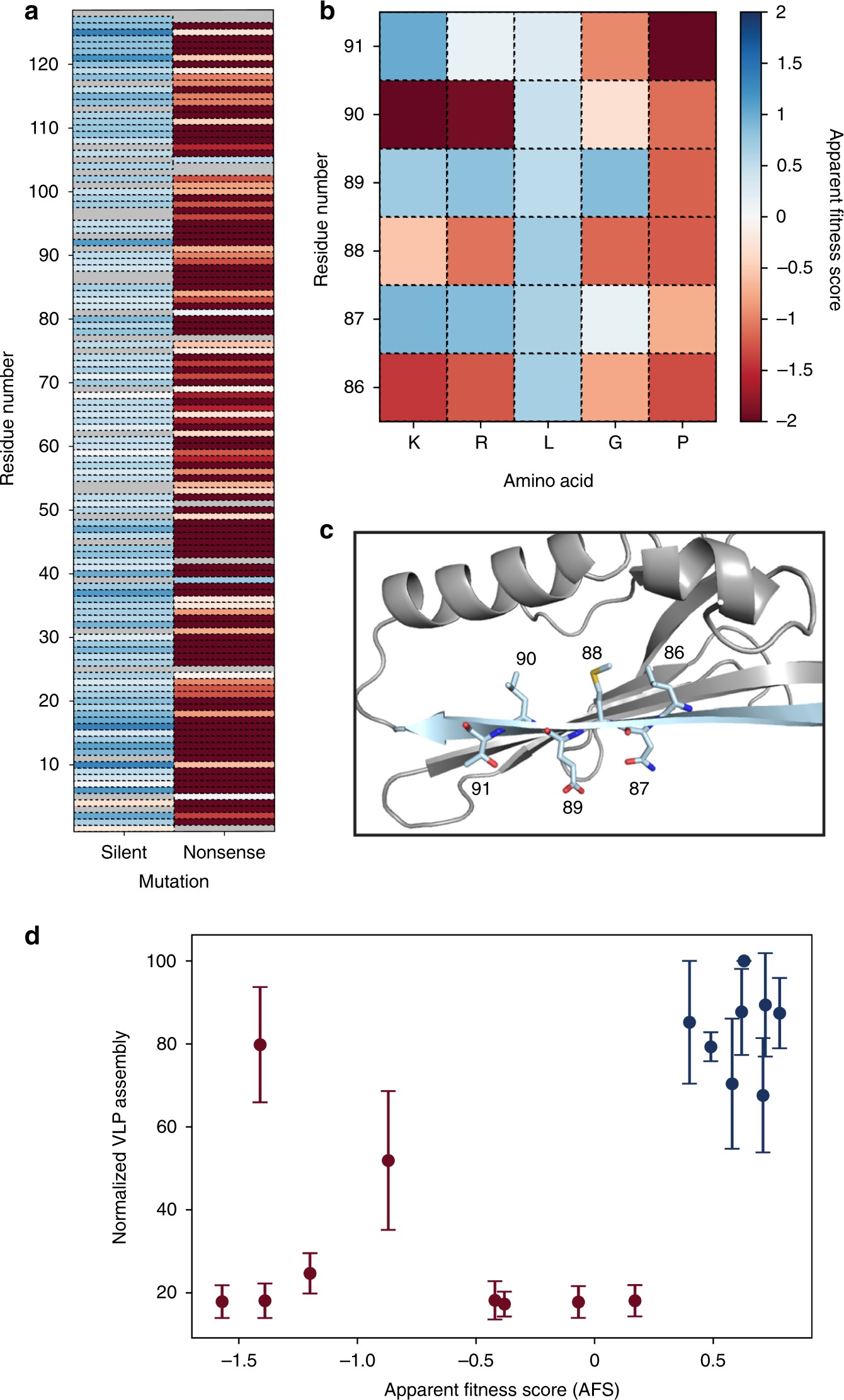

Validation of apparent fitness landscape (AFL). a Synonymous and nonsense mutation values are plotted against residue number. b, c Beta sheet G (light blue) shows predicted mutability patterns. d The assembly assay (n = 3) correlates well with AFS values. Red points were identified as non-assembling in the AFL, and blue points represent mutants with favorable assembly. Error bars indicate standard deviation
