From: A large planetary body inferred from diamond inclusions in a ureilite meteorite

Fig. 1The alternative text for this image may have been generated using AI.

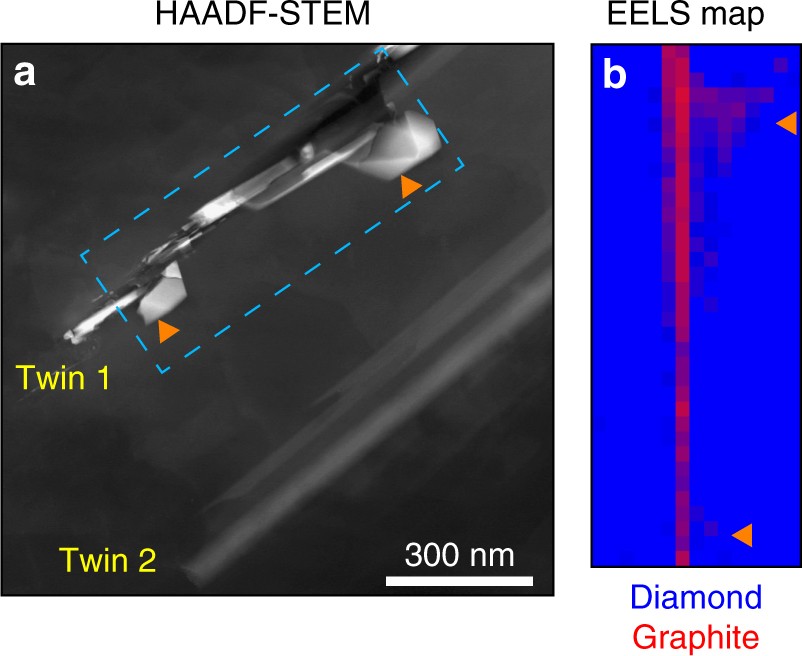

Graphitization of diamond along twinning directions. a The high-angle annular dark-field (HAADF) STEM image shows two twinning regions indicated as twin 1 and twin 2. Twin 1 is intersecting with two inclusions (indicated by orange arrows) and graphitized, while twin 2 is purely diamond. b The graphite-diamond EELS map (from the dashed blue rectangle in panel a) indicates that the graphitization is confined to the twinning region and around the inclusions (red = graphite, blue = diamond)
