Fig. 2

From: Perovskite seeding growth of formamidinium-lead-iodide-based perovskites for efficient and stable solar cells

Fig. 2

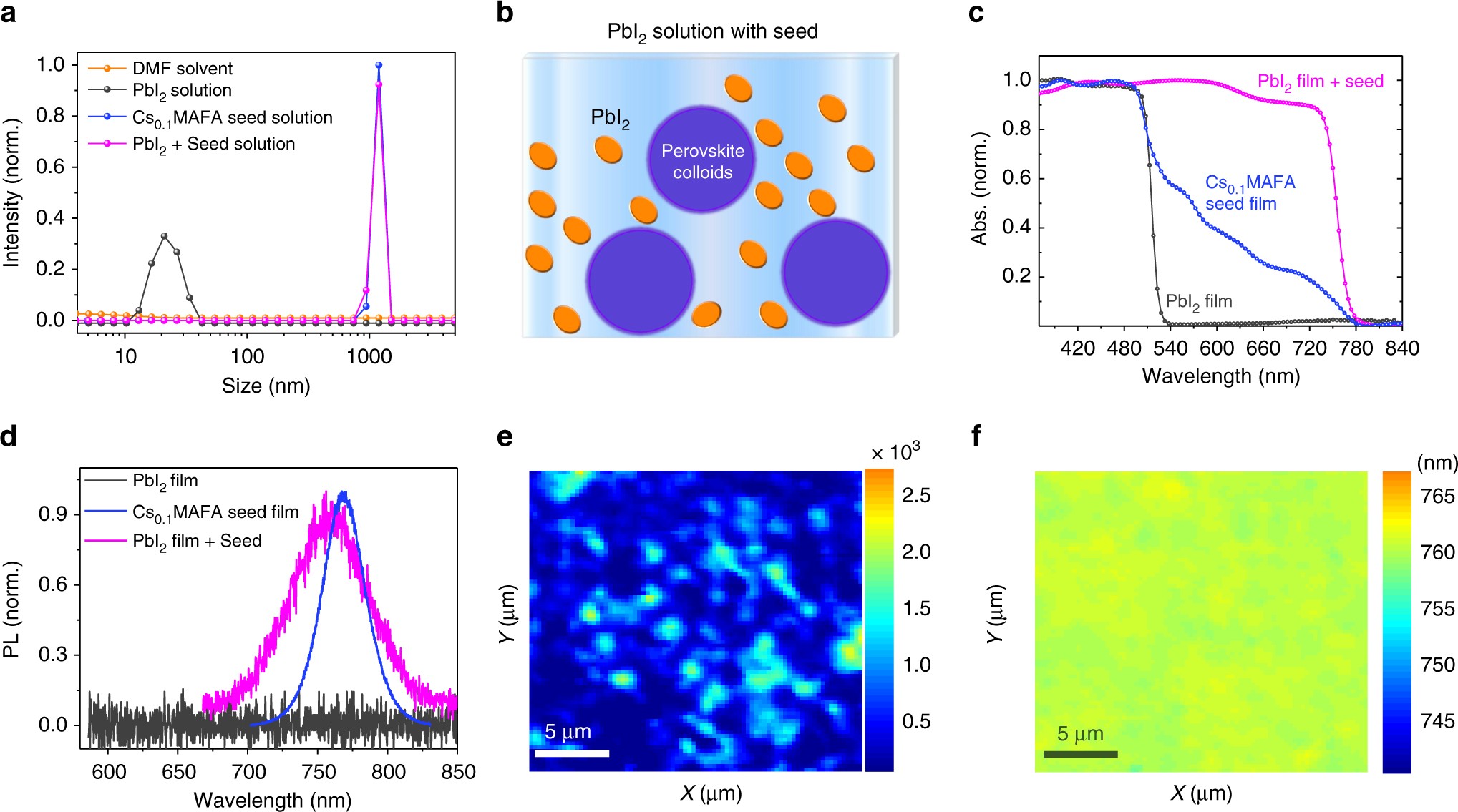

Optical characterization of the PbI2 film with perovskite seeds. a Dynamic light scattering spectra of the pure PbI2 solution (0.00028 M), pure perovskite precursor solution (0.00028 M), and the PbI2 solution mixed with perovskite precursor solution (0.00028 M for PbI2 and 0.00004 M for perovskite precursor). The size indicates the colloidal particle size in solution. b Illustration of the colloids of perovskite precursor in PbI2 solution. c, d The absorption and PL spectra of pure PbI2 film, perovskite seed film with a composition of Cs0.10FA0.78MA0.12PbI2.55Br0.45, and PbI2 film with perovskite seeds (seed concentration 14 vol.%). e–f Confocal PL mapping of the intensity (e) and peak position (f) on the PbI2 film with perovskite seeds
