Fig. 5
From: The southern ocean meridional overturning in the sea-ice sector is driven by freshwater fluxes

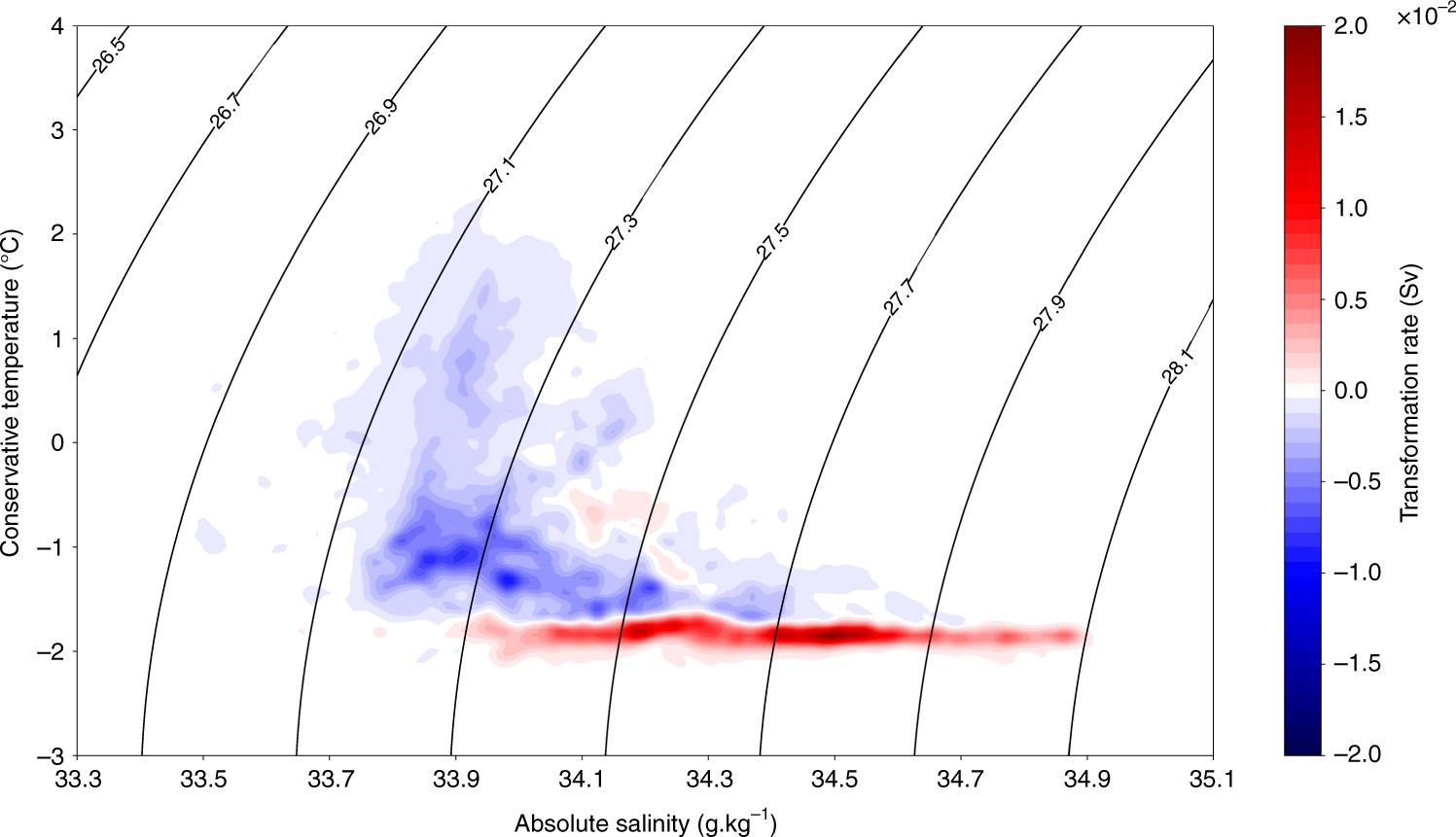

Annual-mean water-mass transformation rate in Sv in the T/S plane with neutral density contours superimposed. The positive values of the water-mass transformation rate indicate a transformation toward higher density classes (buoyancy loss), and the negative values indicate a transformation directed toward lighter density classes (buoyancy gain)
