Fig. 5
From: Theoretical principles of transcription factor traffic on folded chromatin

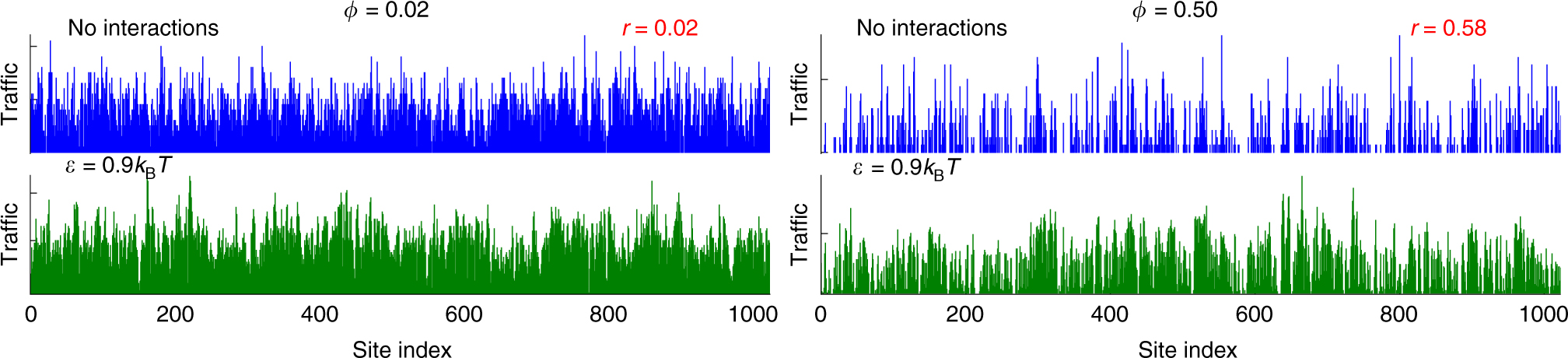

Traffic with and without tracer–polymer interactions. In blue: traffic of tracers without tracer–polymer interactions, i.e., interacting only through hard-core repulsion. In green: traffic of tracers with tracer–polymer affinity equal to 0.9kBT. Left: low compaction with ϕ = 0.02. Right: high compaction with ϕ = 0.50. Values of the Pearson correlation coefficient between the polymer occupancy and the tracer traffic are reported in red
