Fig. 4
From: Budding-like division of all-aqueous emulsion droplets modulated by networks of protein nanofibrils

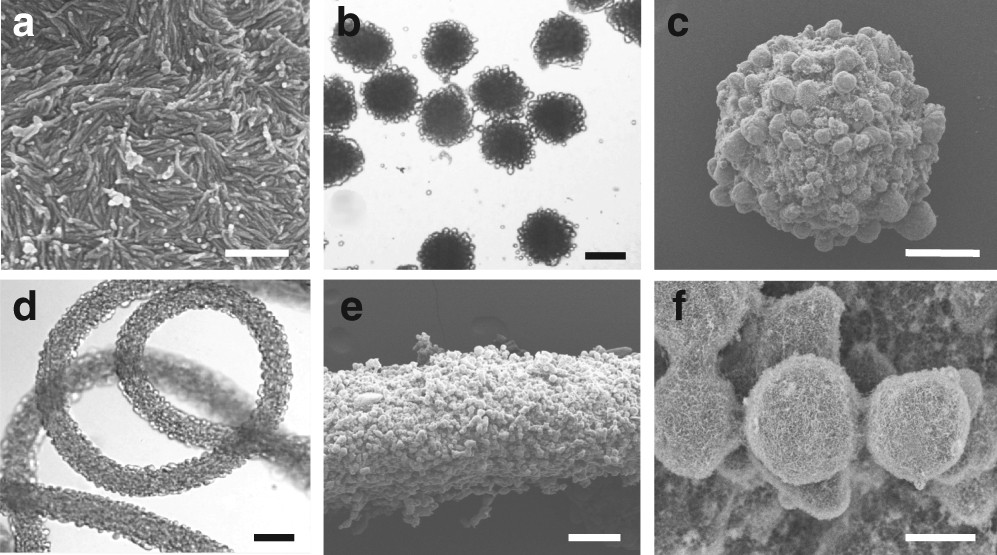

Microfluidic fabrication of protein microparticles and microfibers with surface protrusions. a Scanning electron microscope (SEM) image of fibril networks. Scale bar, 500 nm. b Optical microscope and c SEM images of microbeads with surface protrusions. d Optical microscope and e SEM images of a microfiber with f surface protrusions. Scale bars: 200 μm (b, d), 100 μm (c, e), and 10 μm (f)
