From: Model structures amplify uncertainty in predicted soil carbon responses to climate change

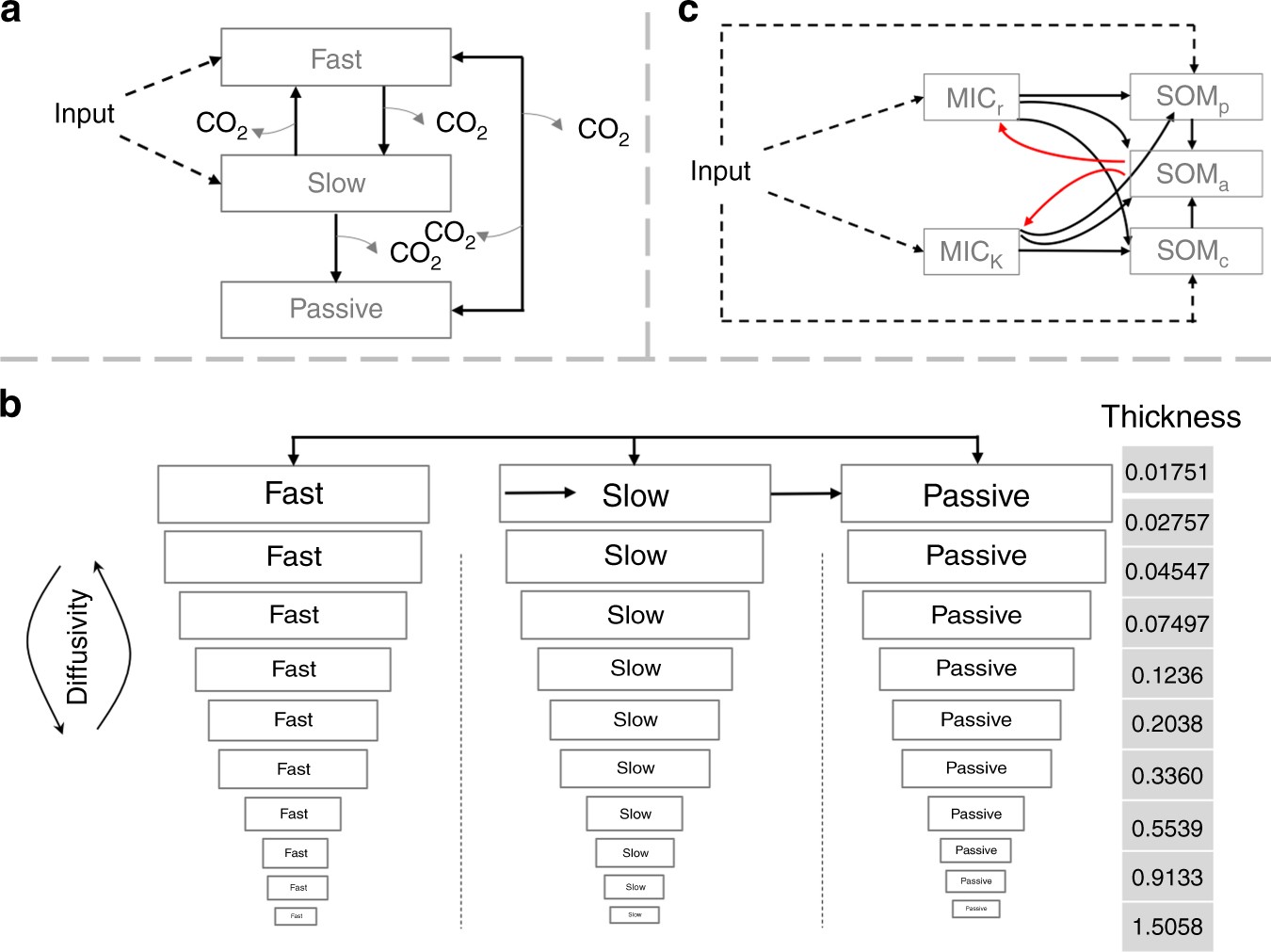

Soil carbon decomposition models with distinct structures. a Conventional Century-type model, b vertically resolved model in CLM 4.5bgc, and c a microbial explicit model, Microbial-Mineral Carbon Stabilization (MIMICS). MIC microbial biomass, SOM soil organic matter. Please refer to methods and Tables 1 and 2 and Supplementary Table 1 for parameterization. Unit of thickness of each soil layer is in meter
