Fig. 5
From: Expansion of a superconducting vortex core into a diffusive metal

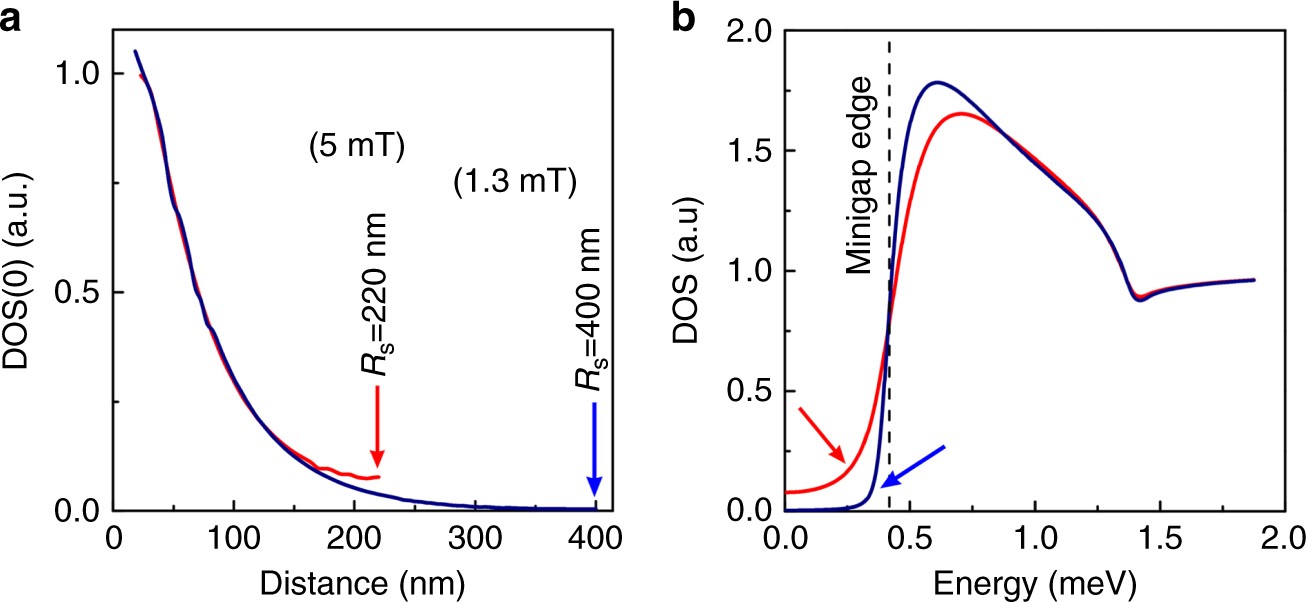

Quasiparticle excitations inside the minigap. a Radial ZB-DOS vortex profile for the 50 nm Cu-thick sample in the field 1.3 mT (blue line) and 5 mT (red line). The profiles differ significantly at the vortex periphery. b Calculated LDOS at the vortex lattice unit cell boundary for the fields 1.3 mT (blue curve) and 5 mT (red curve). The minigap filling with quasiparticle states is evidenced by arrows
