Fig. 3

From: Genetic inactivation of ANGPTL4 improves glucose homeostasis and is associated with reduced risk of diabetes

Fig. 3The alternative text for this image may have been generated using AI.

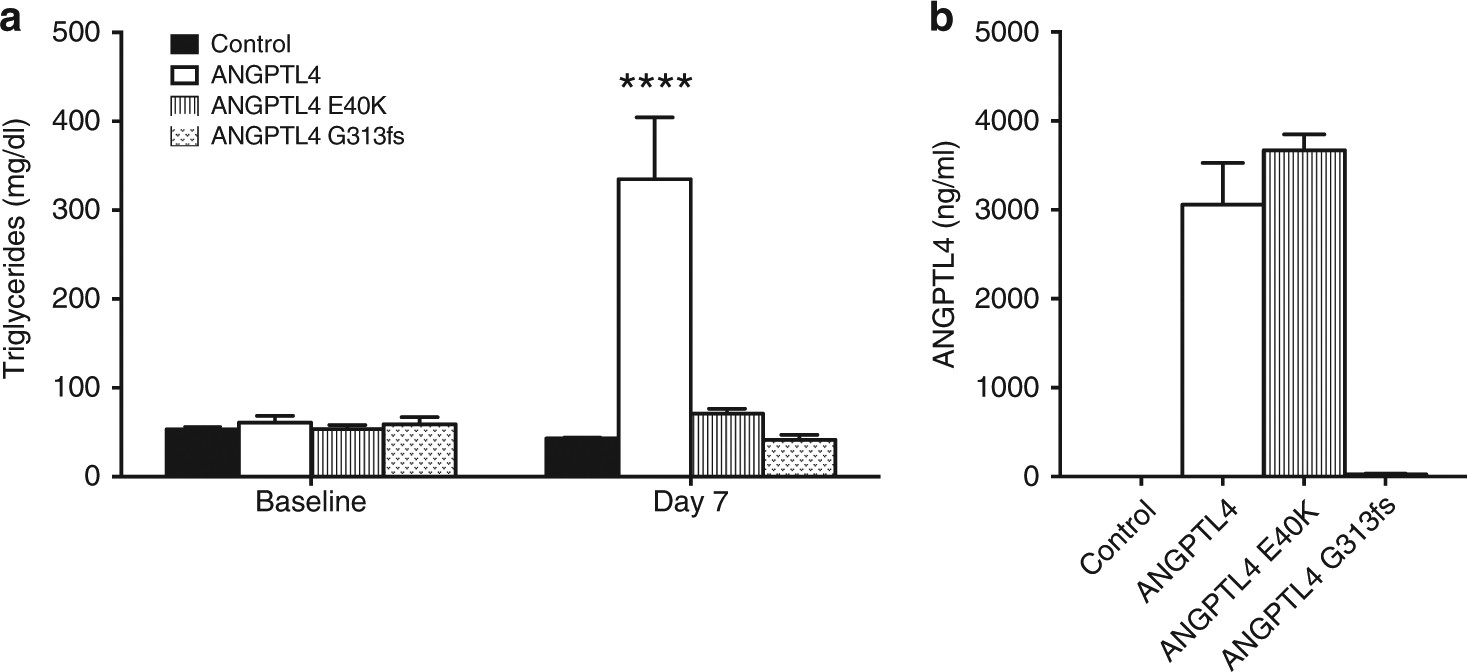

K40 and G313fs abolish ANGPTL4 effect on triglycerides. a Plasma triglycerides levels (4 h fasted) in C57Bl/6 mice before (Baseline) and 7 days after (Day 7) hydrodynamic delivery via tail vein injection of cDNA encoding human E40, K40, and Gly313fs ANGPTL4 variants. Control animals were injected with empty vector. b ANGPTL4 plasma levels were measured in the animals described in (a). All groups had five animals. Values are mean ± SEM. Statistics performed by two-way ANOVA with Bonferroni correction, ****p < 0.0001 vs control
