From: A quantitative mass spectrometry-based approach to monitor the dynamics of endogenous chromatin-associated protein complexes

Fig. 5The alternative text for this image may have been generated using AI.

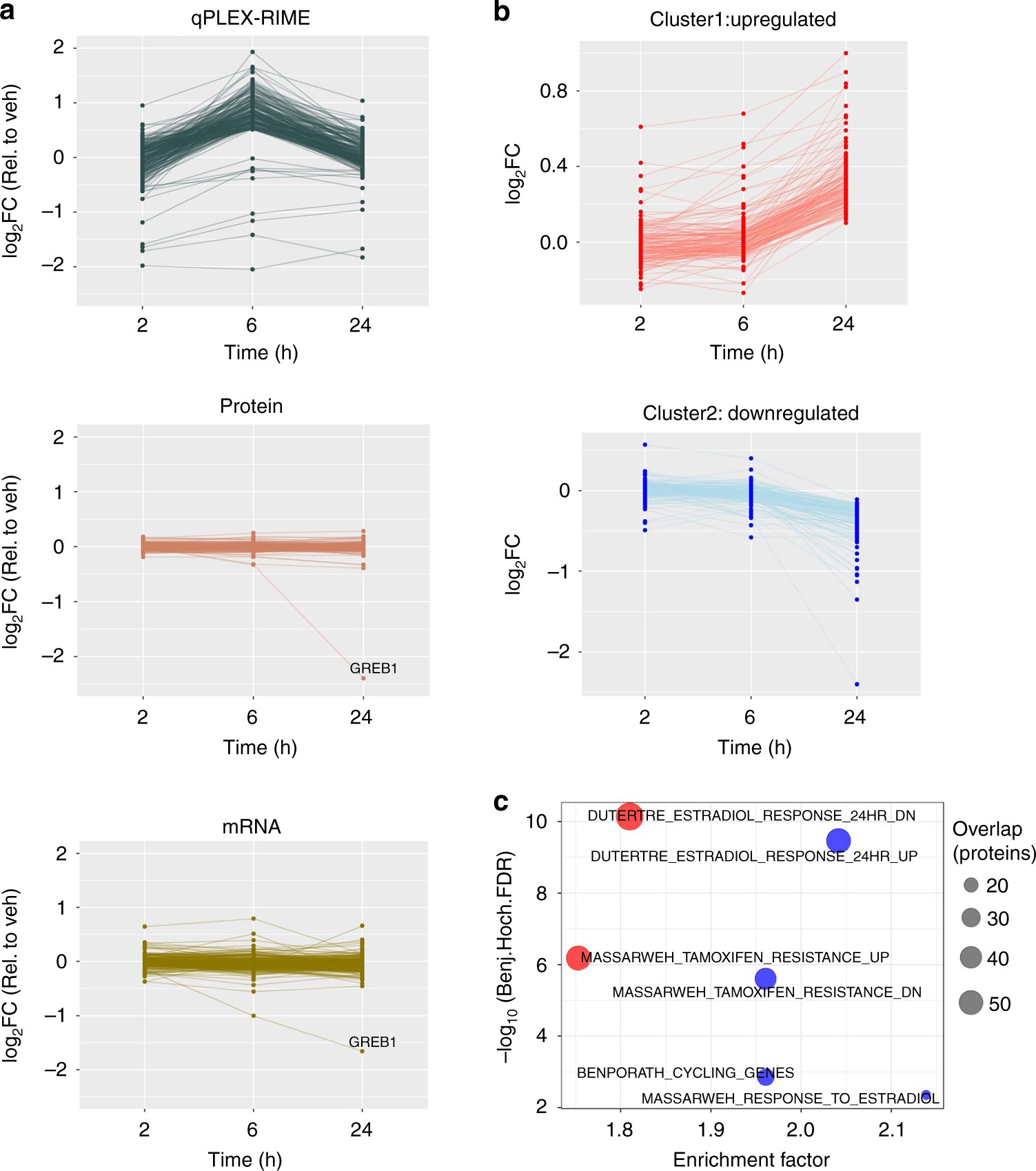

Comparison of qPLEX-RIME data with total proteome analysis and RNA-seq data. a Line plots of the significantly enriched or lost proteins in the qPLEX-RIME data (top panel), their respective profiles in the total proteome analysis (middle panel) and in the RNA-seq analysis (bottom panel). b Line plots representing two k-means clusters of down- and upregulated proteins identified in total proteome analysis (top 10% most variable proteins with at least one significant change, adj. p-value < 0.05). c Gene set enrichment analysis for the down- and upregulated protein clusters
