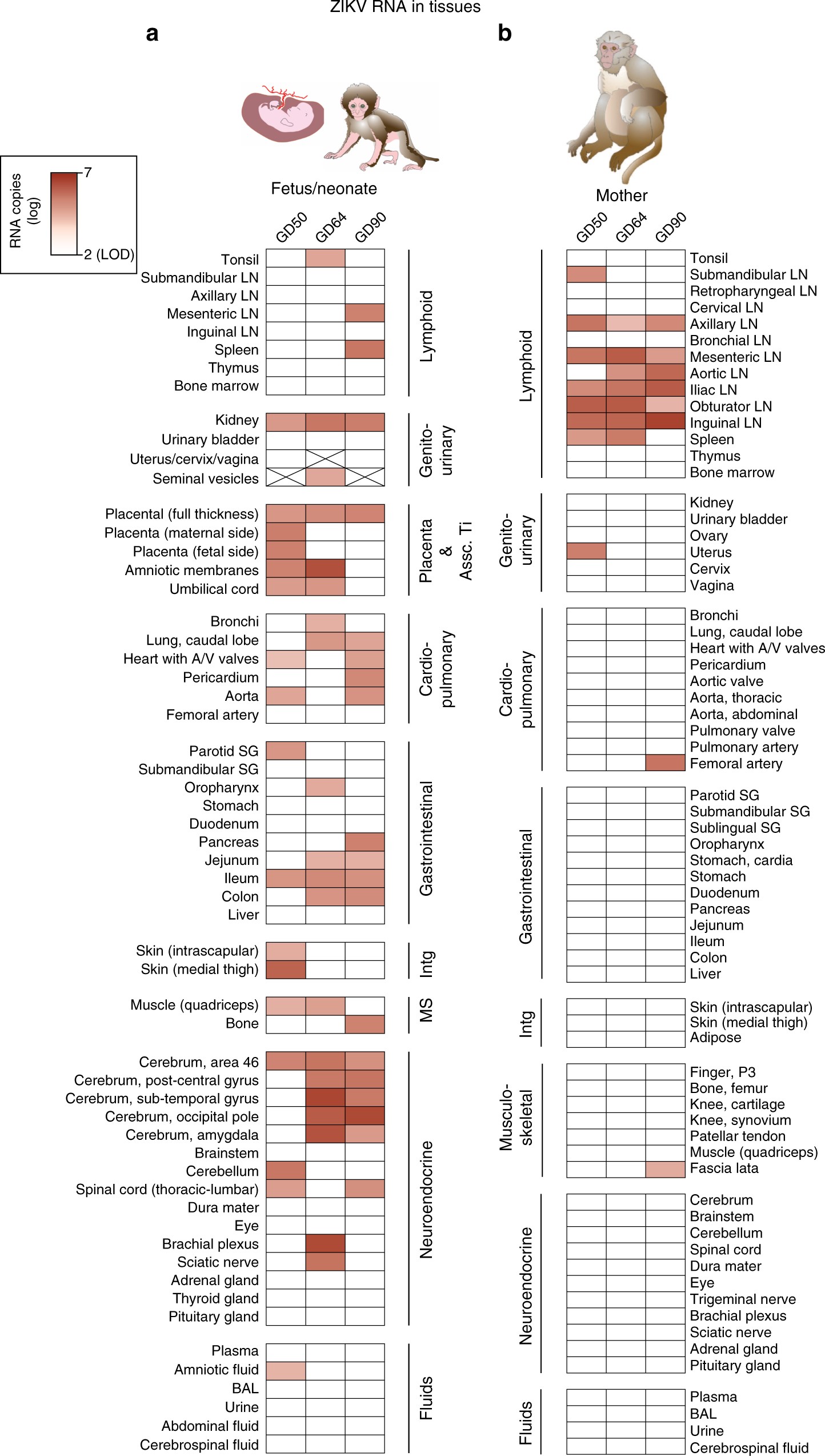

Fig. 4
From: Intraamniotic Zika virus inoculation of pregnant rhesus macaques produces fetal neurologic disease
Tissue tropism of ZIKV RNA differs in fetal macaques compared to their mothers. ZIKV RNA in a fetal/neonatal and b maternal tissues categorized by system. The intensity of red highlights the quantity of ZIKV RNA detected. Absolute ZIKV RNA levels in individual tissues for these animals are shown in Supplementary Figures 5 and 7. Fetal/infant tissues that were not available due to their sex (GD50 and GD90 fetuses were females, GD64 infant was a male) are crossed out. LN lymph node, SG salivary gland, MS musculoskeletal, intg integument, BAL bronchioalveolar lavage, A/V atrioventricular, Assc Ti associated tissues
