Fig. 6

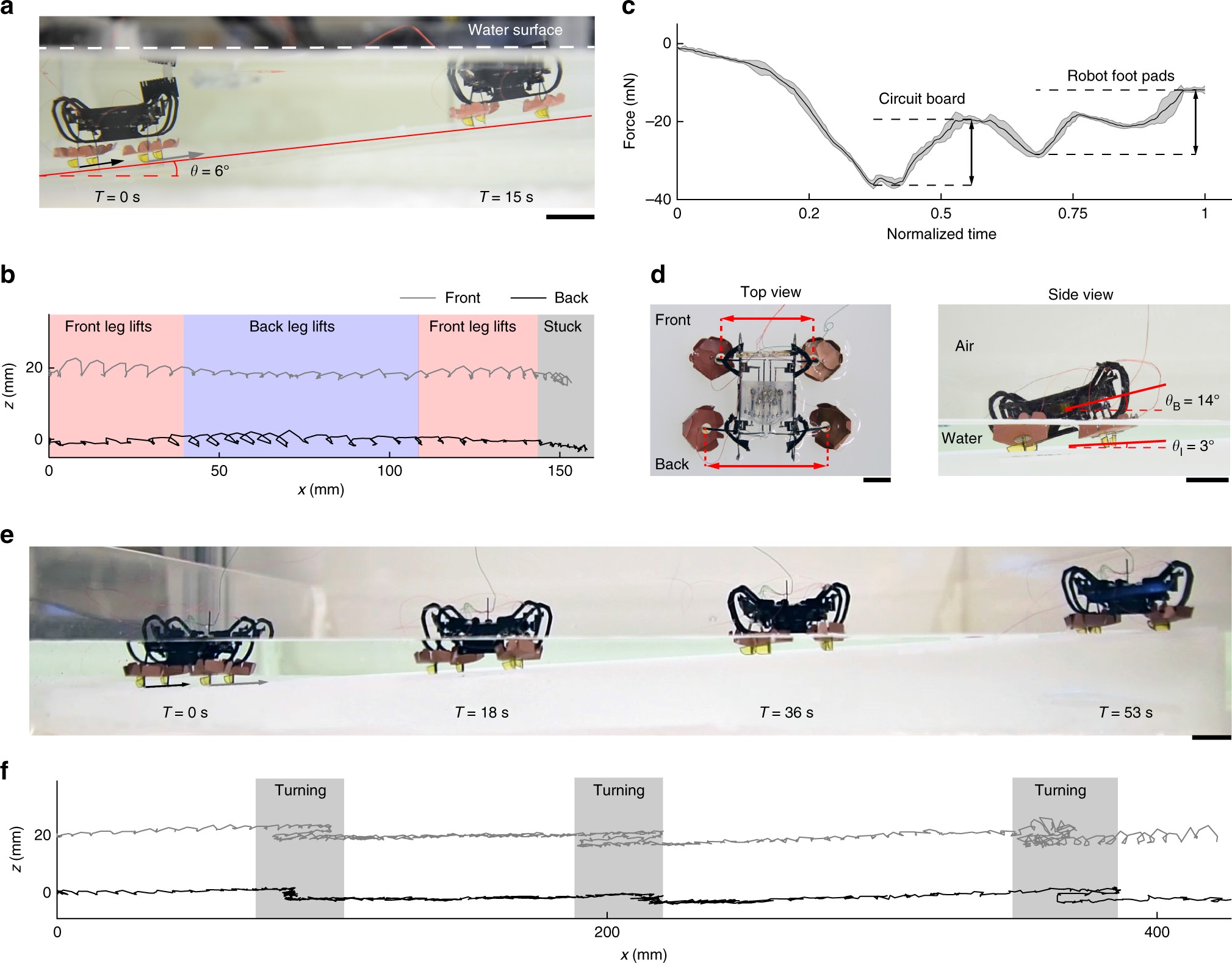

Robot water to land transition. a The robot is stuck at the air-water interface as it climbs an incline from underwater. The surface tension force exerts a counter-clockwise torque on the robot body, preventing the robot hind leg from lifting off. b The trajectories of the robot’s front right and hind right legs. The ramp incline is subtracted from the trajectories to show leg lift at each step. When the robot is stuck, its hind legs cannot lift off the incline surface. c The net force on a robot as it is pulled out of water vertically. The net surface tension force exceeds the robot weight. d Top and side view images of a robot getting stuck at the air-water interface. The robot hind legs splay outward due to larger surface tension force on the rear of the robot. e After stiffening robot transmission in the lift DOF, the robot moves through the air–water interface on a 3° incline. f Robot leg trajectories during the water to land transition. The ramp incline is subtracted from the trajectories. During the transition process, the lift motion of both robot front and hind legs are reduced due to the inhibiting surface tension force. The robot leg motion recovers after the robot exits the surface of water. Scale bars (a, d, e), 1 cm
