Fig. 3 | Nature Communications

Fig. 3

From: Discovery of ZrCoBi based half Heuslers with high thermoelectric conversion efficiency

Fig. 3

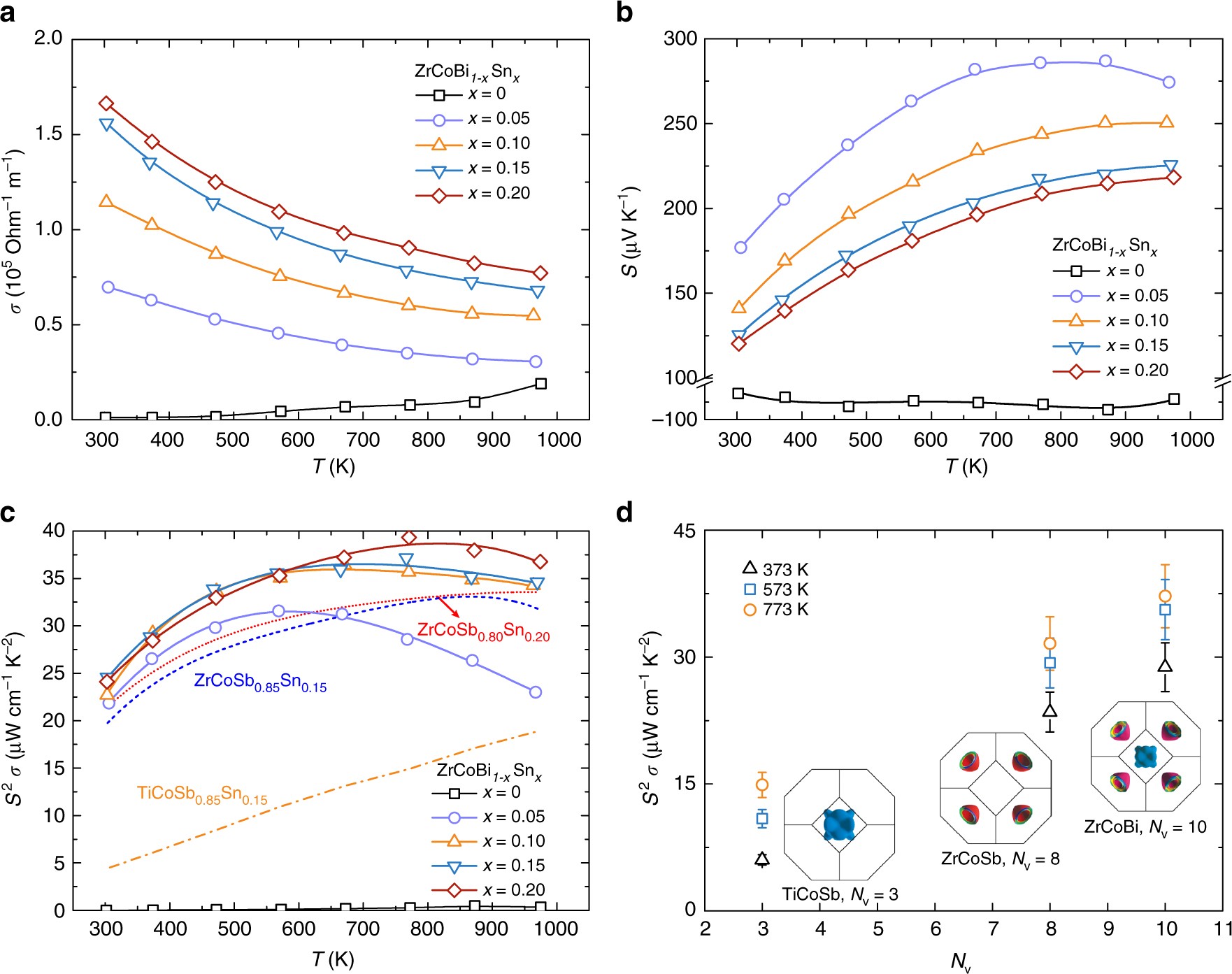

Electrical properties of ZrCoBi1-xSn x . Temperature-dependent electrical conductivity (a), Seebeck coefficient (b), and power factor (c) of ZrCoBi1-xSn x (x = 0, 0.05, 0.10, 0.15, and 0.20). d Band-degeneracy-dependent power factors for 15% Sn doped TiCoSb, ZrCoSb, and ZrCoBi at different temperatures with carrier concentration of 1.62 × 1021, 1.47 × 1021, and 2.20 × 1021 cm-3, respectively
