From: Designing a magnesium alloy with high strength and high formability

Fig. 2

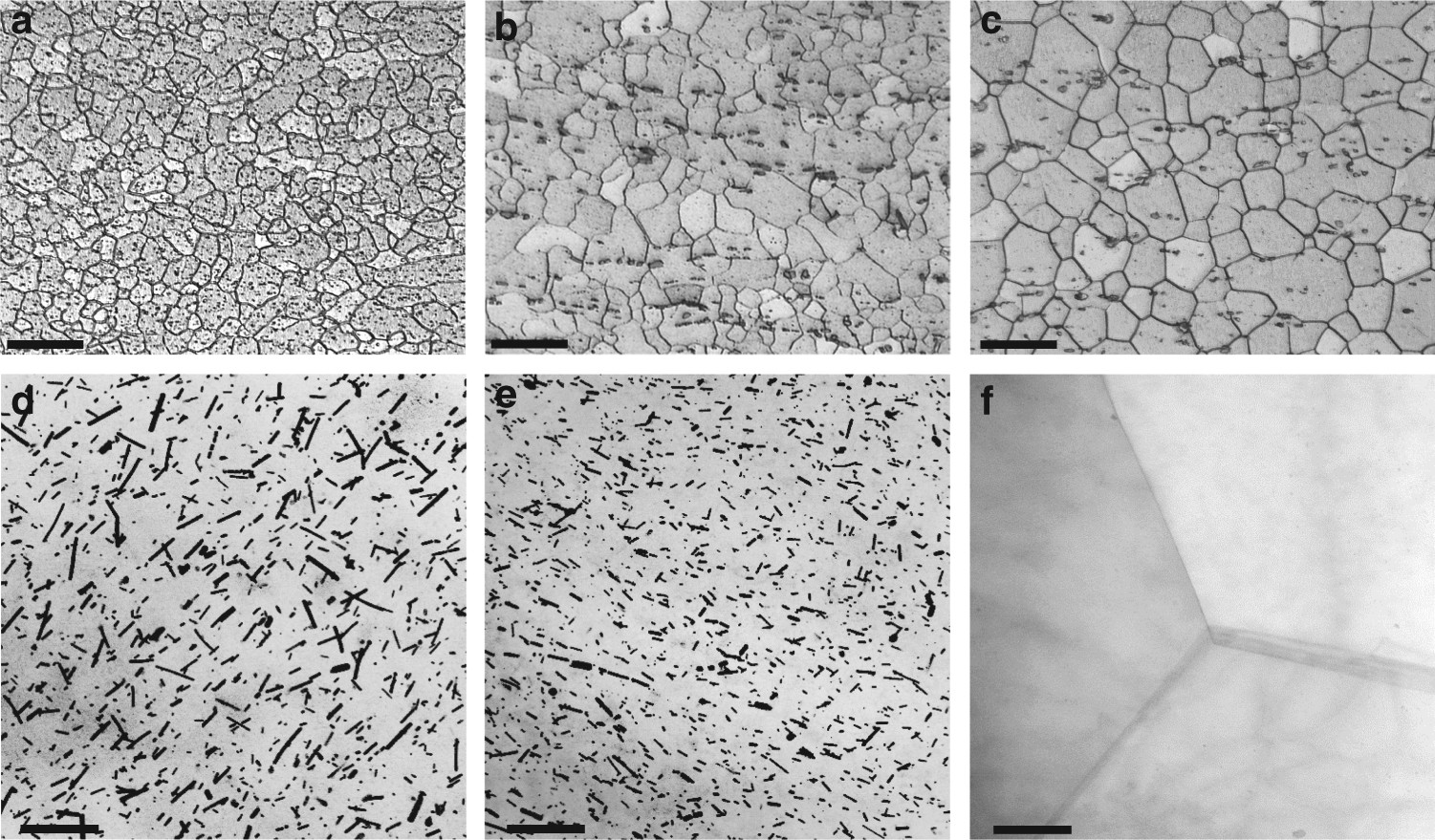

Microstructure of the studied Mg alloys. a–c OM images of TRC-AZMX3110 (a), IC-AZMX3110 (b), and IC-AZX310 (c) showing grain size and distribution of coarse second phases particles. Scale bar of OM images corresponds to 20 μm. d–f STEM images of TRC-AZMX3110 (d), IC-AZMX3110 (e), and IC-AZX310 (f) showing the presence of fine plate-shaped particles in TRC-AZMX3110 and IC-AZMX3110 and the absence of such fine particles in IC-AZX310. Scale bar of STEM images corresponds to 500 nm
