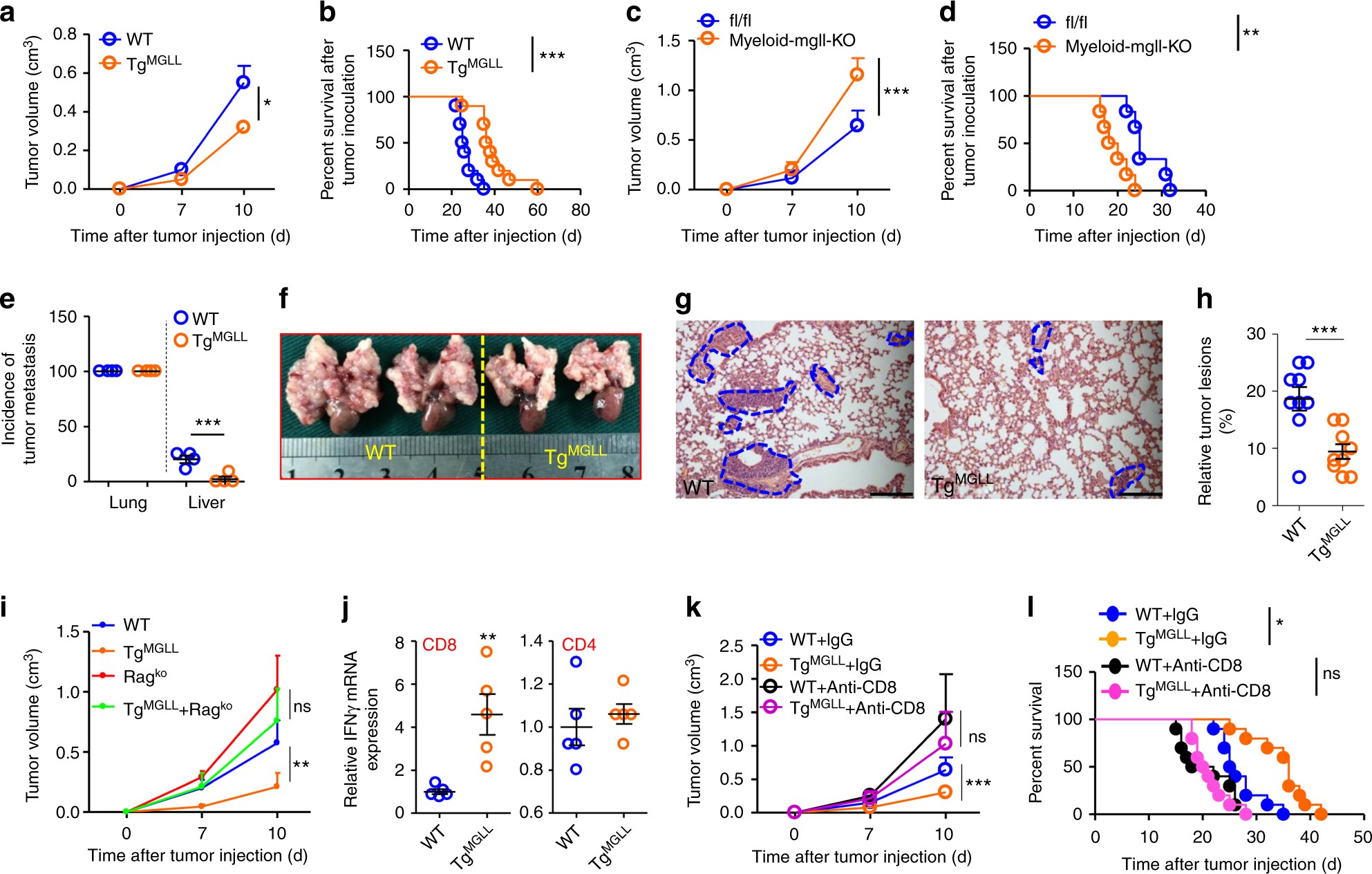

Fig. 2
Macrophage MGLL inhibits tumor progression via CD8+T cells. a Six-week-old WT and TgMGLL mice were subcutaneously inoculated with MC-38 cells, and tumor volumes were measured dynamically. This test was performed four times. (n = 10) b The survival time of the MC-38 tumor-bearing mice described in a. The data represent the means ± s.e.ms. (n = 10, ***P < 0.005, Gehan-Breslow-Wilcoxon test). c The growth curves of the subcutaneous MC-38 tumors in Myeloid-mgll-KO mice and the control littermates (fl/fl). (n = 6). d The survival time of the MC-38 tumor-bearing mice described in c. The data represent the means ± s.e.ms. (n = 6, **P < 0.01, Gehan-Breslow-Wilcoxon test). e Incidence of metastasis in lungs and livers of the intravenous tumor model. The 6-week-old C57BL/6 WT or transgenic mice were intravenously injected with MC-38 colorectal cancer cells (5 × 106 cells per mouse) via the tail vein. The mice were sacrificed 2 weeks after tumor inoculation. The lungs and livers were dissected for pathological observation of tumor lesions. Data are means ± s.e.ms. and polled from four individual experiments. Each symbol represents an experimental replicate (n = 8~11). f–h The MC-38 tumor lesions in lungs of WT and TgMGLL mice, as described in e. Representative images of gross anatomy (f) and H&E staining (g) are displayed. The blue dotted lines indicate the tumor lesions. The relative tumor lesions were calculated (h). Scale bars, 200 μm. (n = 8~9). i Macrophage MGLL inhibited tumor growth in a Rag-1 dependent mannaer. MC-38 tumors were inoculated subcutaneously in WT, TgMGLL, Rag1KO or TgMGLL + Rag1KO mice and the tumor volumes were measured dynamically. (n = 5) j mRNA levels of IFNγ in CD8+ or CD4+ T cells that were isolated from the MC-38 tumors inoculated subcutaneously in WT or TgMGLL mice for 3 weeks. (n = 5). k Six-week-old WT or TgMGLL mice were subcutaneously inoculated with MC-38 cells and treated with anti-CD8 antibody or IgG as a control. The tumor volume was measured dynamically. (n = 10). l The survival time of the MC-38 tumor-bearing mice treated as described in k. The data represent the means ± s.e.ms. (n = 10, *P < 0.05, Gehan-Breslow-Wilcoxon test; ns, not significant). Data in a, c and e–k represent the means ± s.e.ms. (*P < 0.05, **P < 0.01, ***P < 0.005; student’s t-test; ns not significant)
