From: Microbial biogeography of 925 geothermal springs in New Zealand

Fig. 5The alternative text for this image may have been generated using AI.

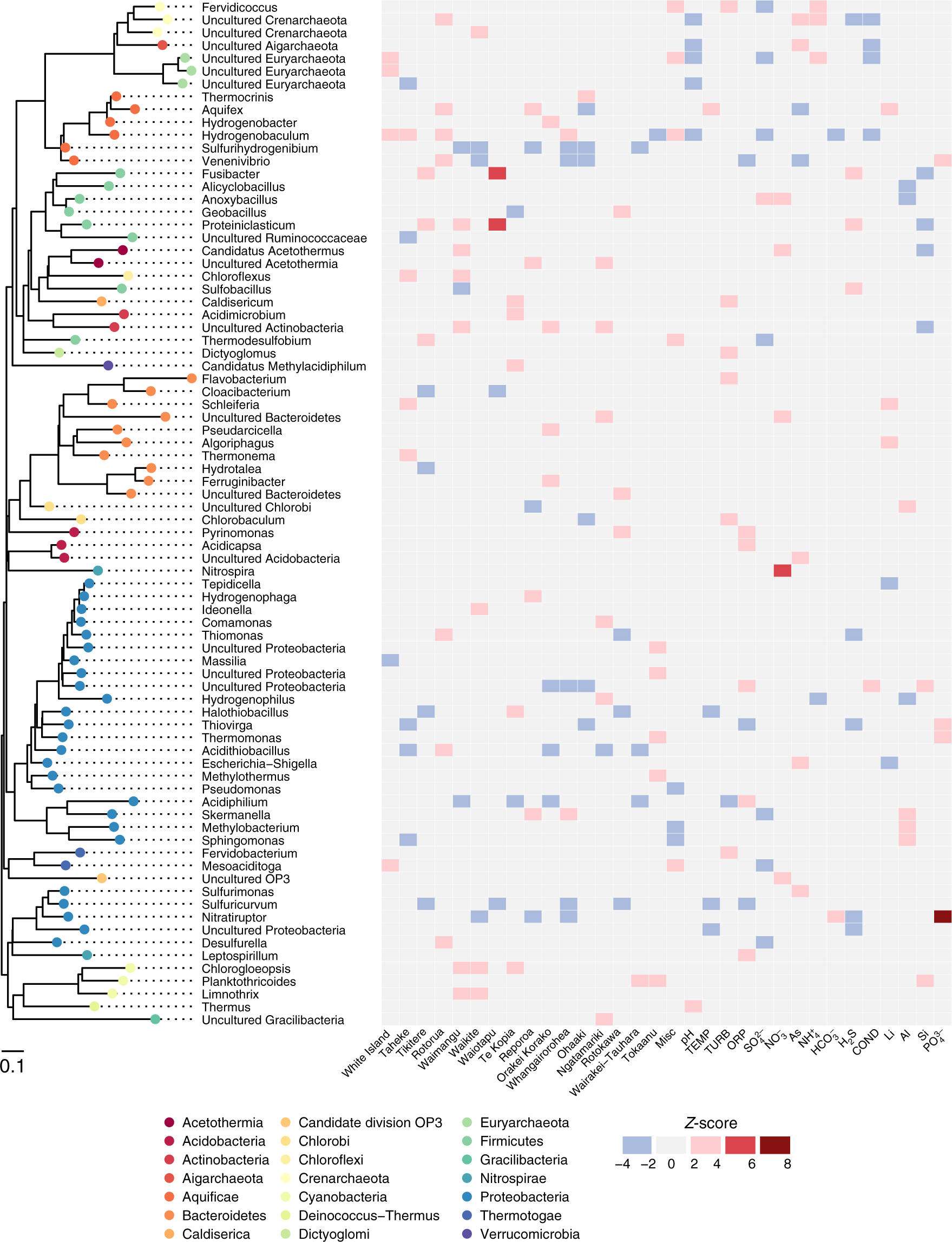

Taxonomic association with location and physicochemistry. The heat map displays positive (red) and negative (blue) association of genus-level taxa (> 0.1% average relative abundance) with each geothermal field and significant environmental variables, based on Z-scores of abundance log ratios. Each taxon is colour-coded to corresponding phylum on the approximately maximum-likelihood phylogenetic tree
