Fig. 3
From: Ultrathin and multicolour optical cavities with embedded metasurfaces

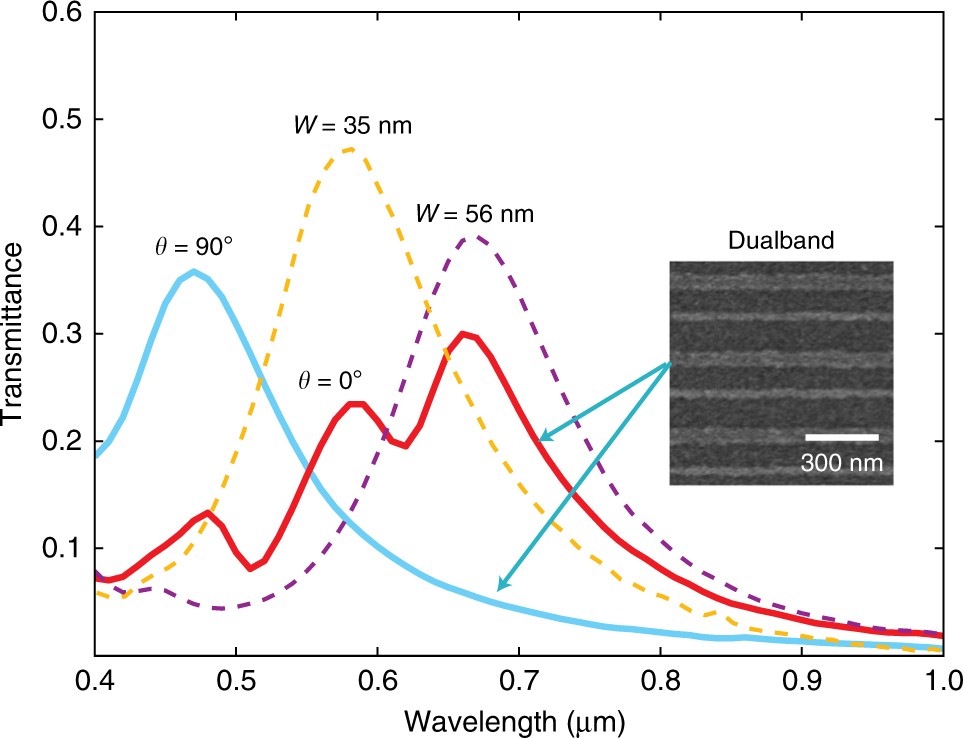

Spectra transmission of dualband nanocavity. Experimentally obtained transmission spectra of dualband nanocavity with 60-nm-thick polymer spacer: the dualband metasurface consists of two different Ag gratings with 35 nm and 56 nm linewidth
