Fig. 6

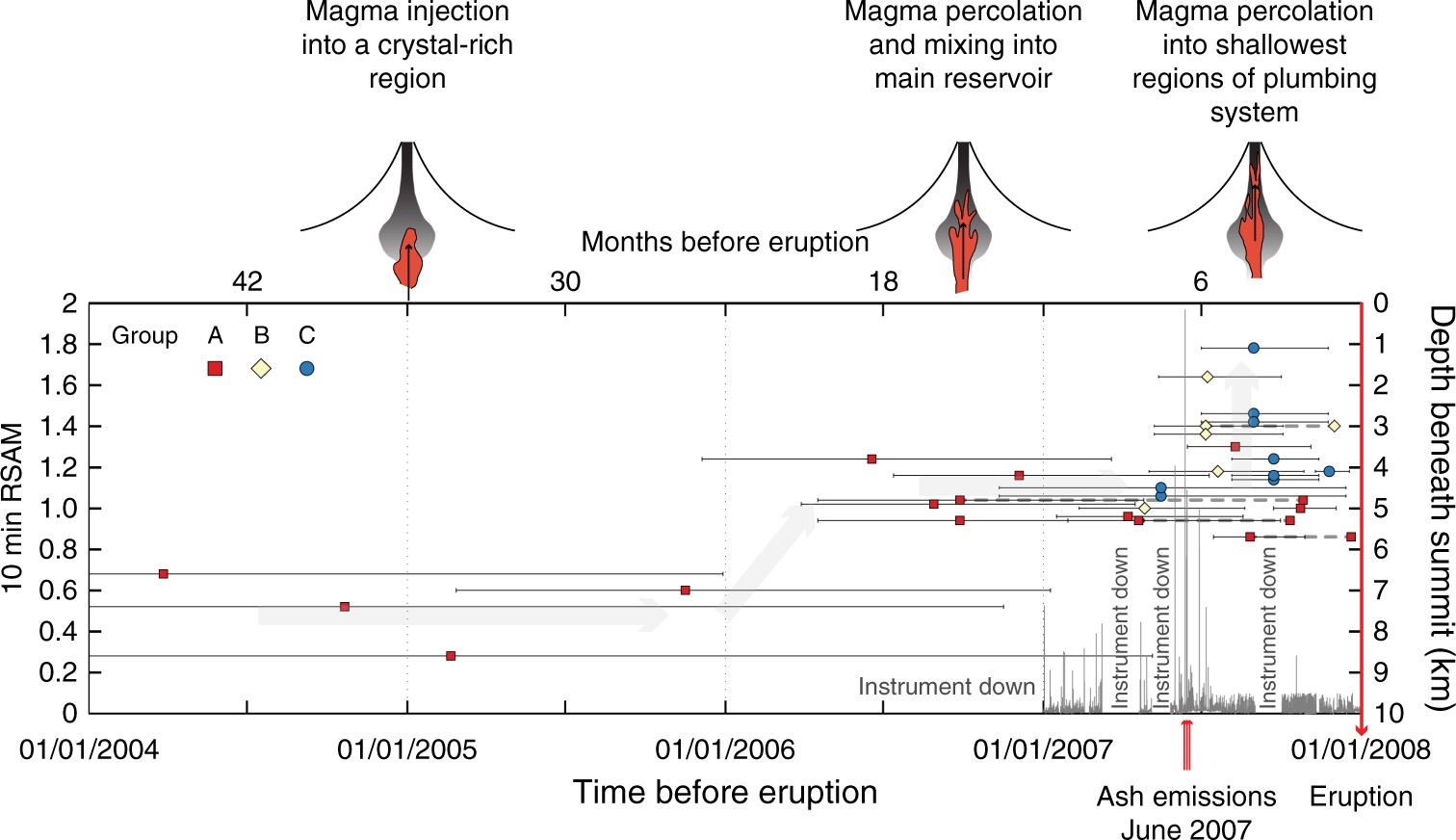

Combined geochemical, seismic, and observed datasets prior to the 2008 eruption. We observe that shallower pressures are recorded as the volcano gets closer to eruption. Also note that peak seismicity, ash-venting and some timescales from the crystals overlap, probably reflecting gas and magma movement towards the surface. Other crystals post-date the seismicity peak by a few months and may indicate that there is a reaction time for the crystal-rich system to record the processes of melt movement or/and that final melt movement towards the surface was aseismic. Also shown is a schematic cartoon showing the proposed timeline of magmatic processes is shown above. Gaps in the 10 min RSAM data indicate when the instruments were not collecting data. Grey arrows in the background show the general magma migration of magma path. Symbols connected by a dotted line show timescales for the complex crystals. Error bars show the uncertainty on the diffusion timescales based on the discrepancy from the DIPRA model
