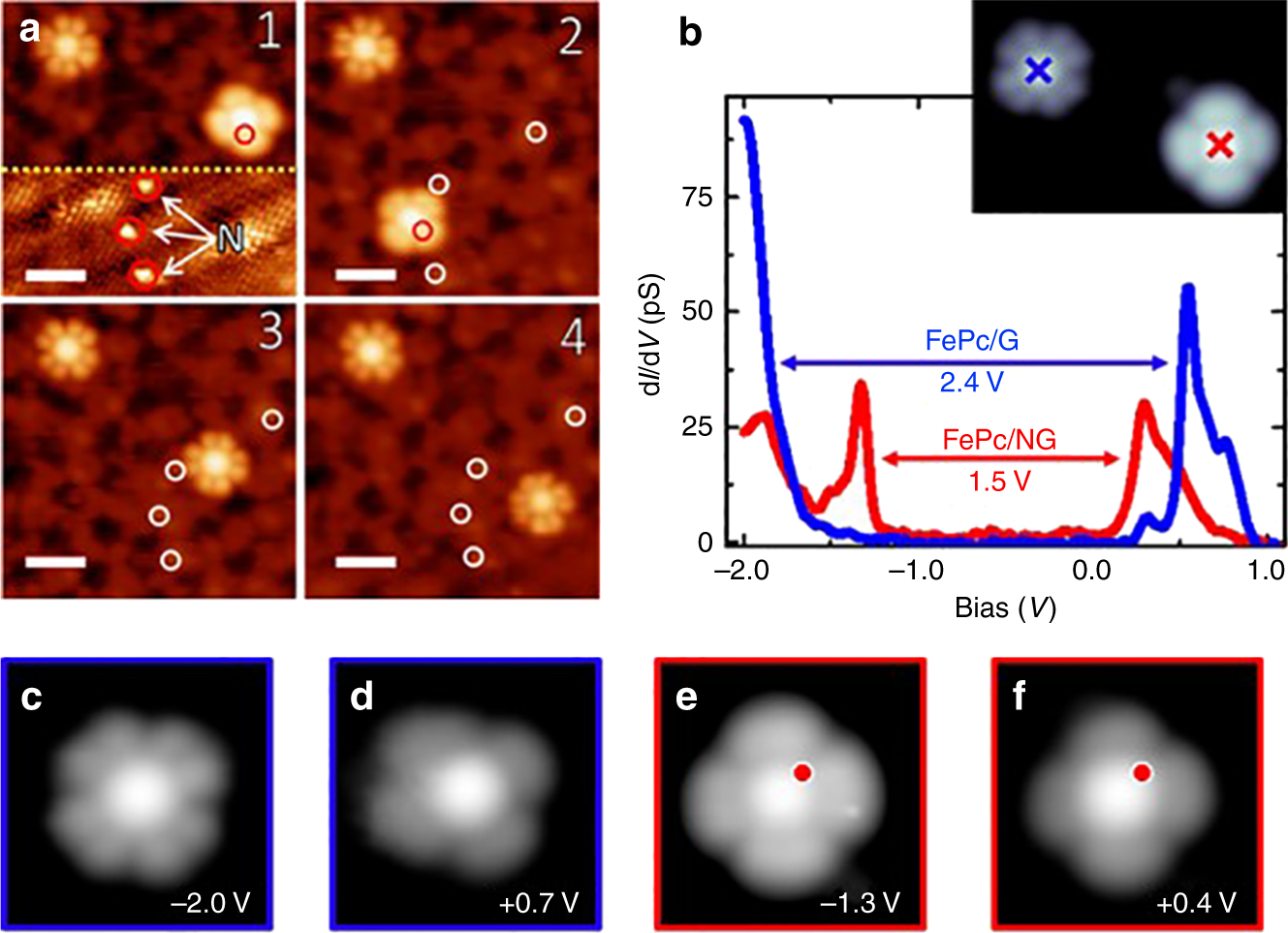

Fig. 2
From: Non-covalent control of spin-state in metal-organic complex by positioning on N-doped graphene
Effect of N-dopant on the FePc electronic structure. a STM images acquired after steps of controlled lateral manipulation of FePc on N-doped graphene. From the initial situation (1), where a FePc molecule is adsorbed on an N-dopant, the molecule was moved to a different configuration on another N-dopant (2), then to a distance of 1.3 nm from any N-dopant (3), and finally to pristine graphene (4). The circles mark the positions of the N-dopants. The FePc molecule in the top left is located on pristine graphene and served as a reference. The scale bar corresponds to 2 nm. b dI/dV spectra acquired at the center of FePc on pristine graphene (blue) and on an N-dopant (red). 3.6 nm × 3.6 nm STM bias-dependent images (It = 10 pA) of FePc on pristine graphene (c, d) and on an N-dopant (e, f), acquired at biases near the resonances shown in the dI/dV spectra (b)
