Fig. 2

From: Positive and negative regulation of carbon nanotube catalysts through encapsulation within macrocycles

Fig. 2

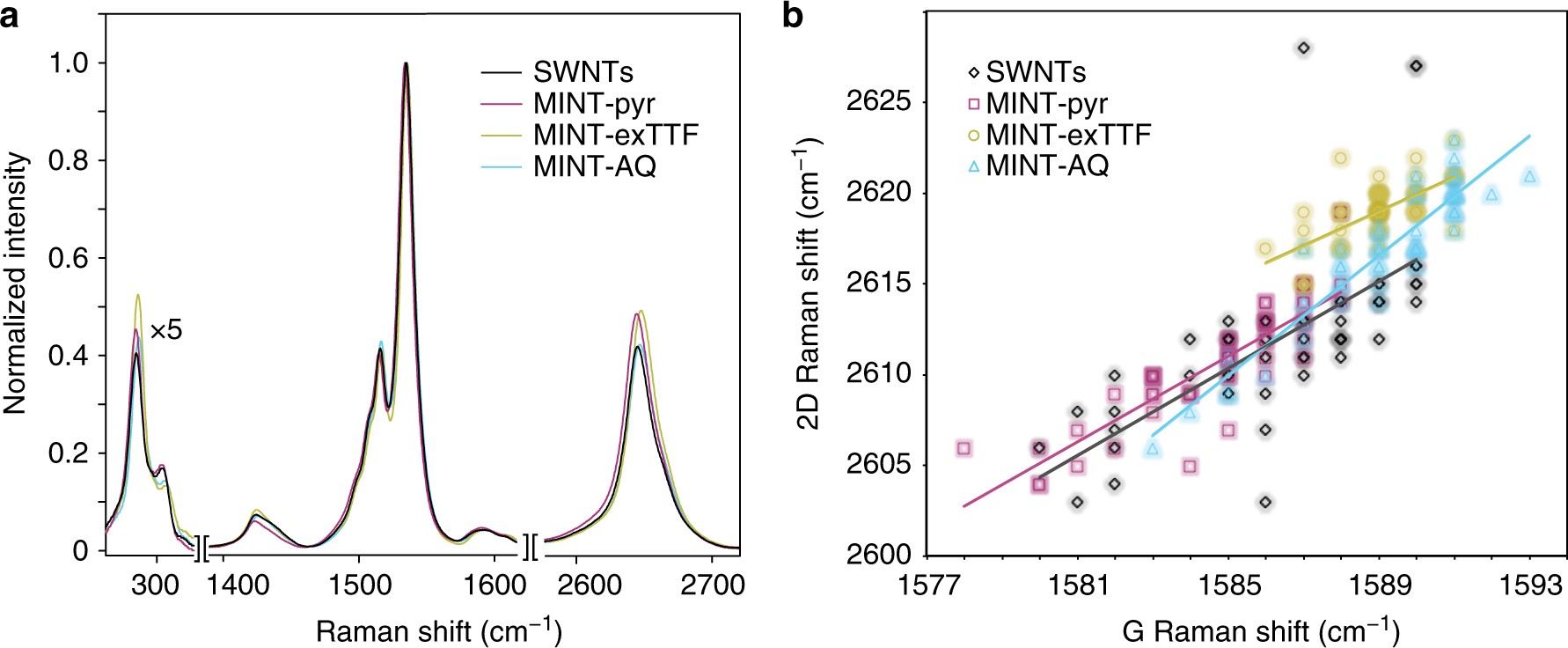

Raman spectroscopy. a Average (N = 50) Raman spectra of SWNT (black), MINT-exTTF (yellow), MINT-pyr (purple), and MINT-AQ (cyan). b Plot of the Raman shift of 2D band vs G band for each of the 50 different spectra (λexc = 532 nm) of SWNT (black rhombi), MINT-exTTF (yellow circles), MINT-pyr (purple squares), and MINT-AQ (cyan triangles), data points are shaded to indicate the frequency of occurrence
