Fig. 8 | Nature Communications

Fig. 8

From: Nucleoporin 107, 62 and 153 mediate Kcnq1ot1 imprinted domain regulation in extraembryonic endoderm stem cells

Fig. 8

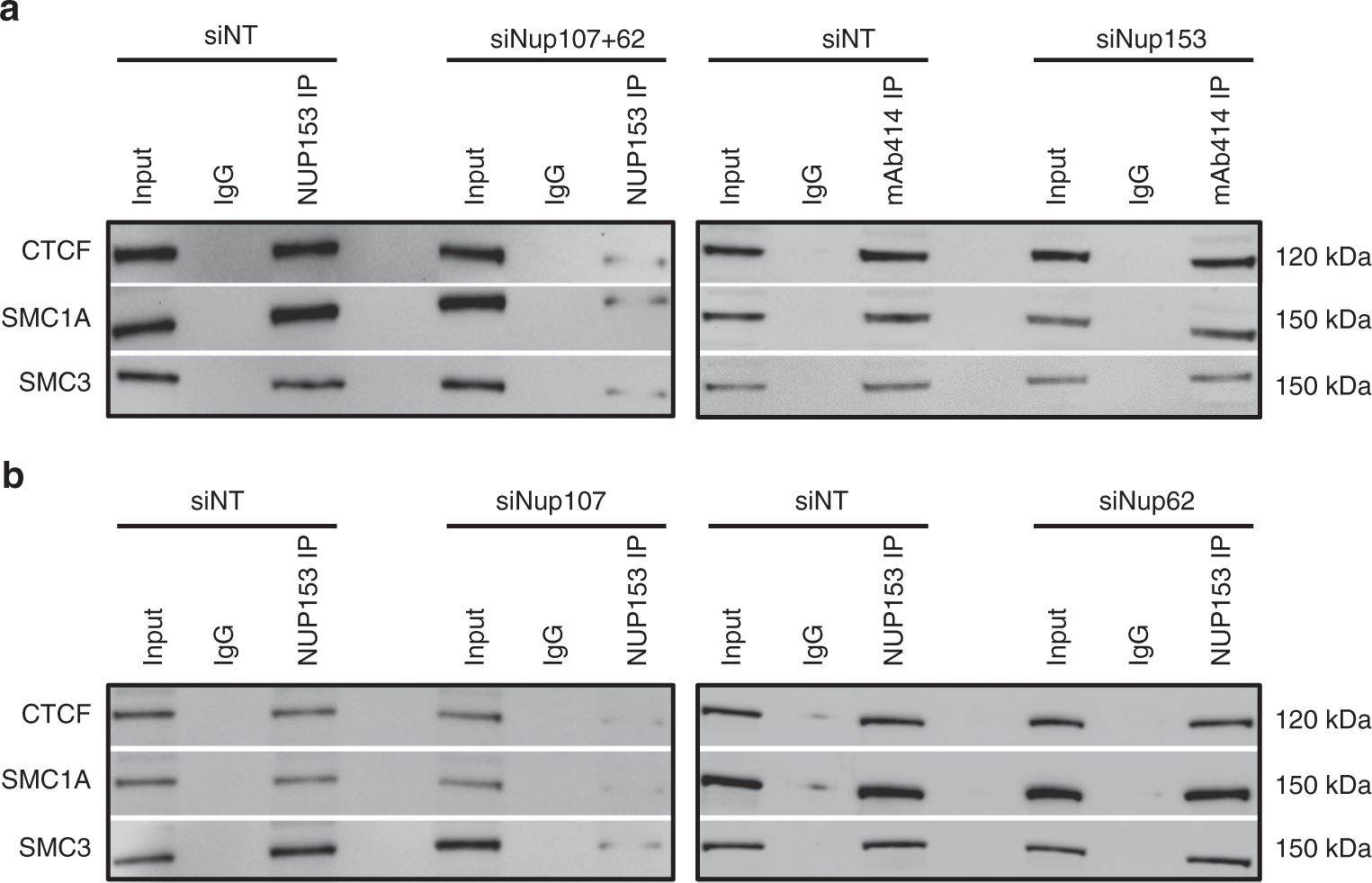

NUP107 is required for NUP153 and NUP62 interaction with CTCF, SMC1A, and SMC3. a NUP-immunoprecipitation with NUP153 and mAb414 antibodies was performed on control (siNT) and Nup107/62- and Nup153-depleted XEN nuclear lysates, following which western analysis was conducted using CTCF, SMC1A, and SMC3 antibodies (n = 3 biological replicates). b NUP-immunoprecipitation with NUP153 antibodies was performed on Nup107- and Nup62-depleted XEN lysates, followed by western analysis using CTCF, SMC1A, and SMC3 antibodies (n = 3 biological replicates)
