Fig. 5
From: The influence of Arctic amplification on mid-latitude summer circulation

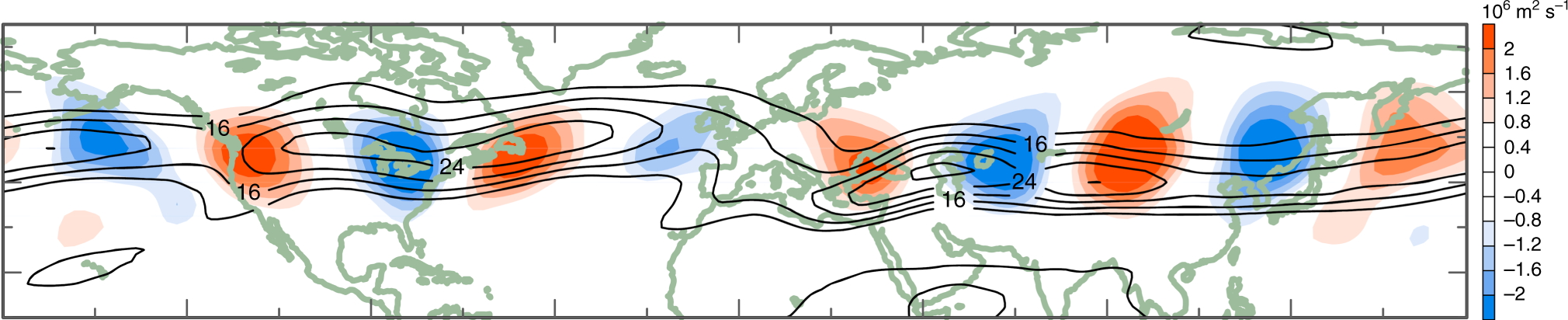

Enhanced circumglobal wave train embedded in the summer jet. Linear trends from 1979 to 2010 in the July 250 hPa stream function in the short-wave regime (blue-red shading) computed with the long wavenumbers (1–4) removed. The change in the short waves is embedded in the climatological July-mean 250-hPa wind speed depicting the jet stream (black contour lines). Adapted from (Wang et al.95.)
