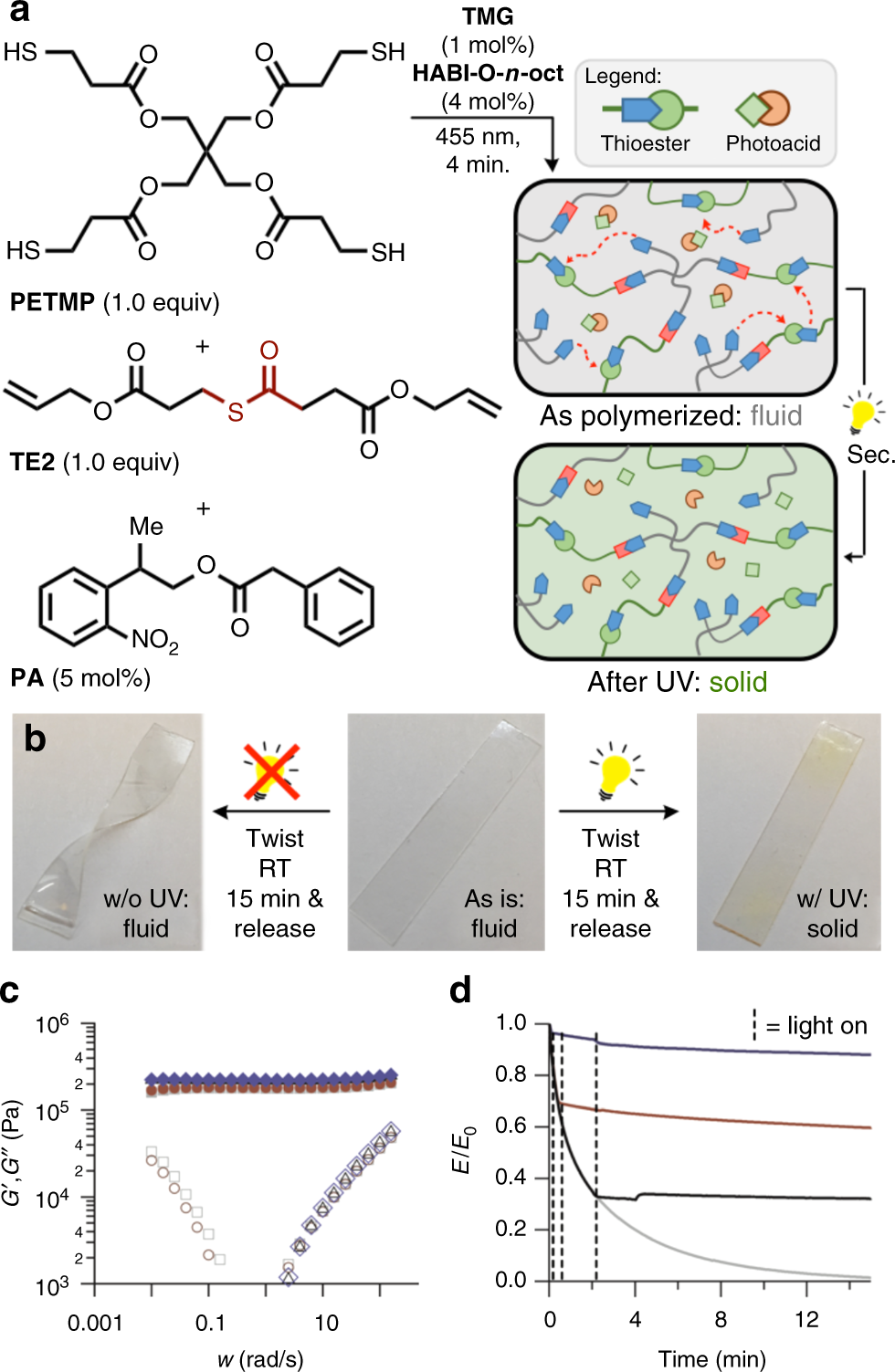

Fig. 3

Permanent, instantaneous switching of a fluid to a solid. a A general formulation that gives a material which is switched from a fluid to a solid with UV light. b As is, the fluidic sample forms a new permanent shape when twisted; however, after irradiation (5 min, 365 nm, 75 mW/cm²) the now solid sample does not adopt the new shape. c Rheometry shows that this material acts permanently as a fluid (immediately after polymerization: G′ = grey filled square; G″ = grey open square; 1.5 h after polymerization: G′ = red filled circle; G″ = red open circle) until exposure to UV light, which switches it to a solid (immediately after irradiation: G′ = black filled triangle; G″ = black open triangle; 1.5 h after irradiation: G′ = blue filled diamond; G″ = blue open diamond). d The nearly instantaneous solidification of the material upon exposure to UV light, shown here by the relaxation of stress at a constant strain (10% strain, light on at 5 (blue), 20 (red), and 120 (black) seconds, irradiated for 120 s, 320–500 nm, 75 mW/cm², a small thermal recovery was noted in each case after the light was turned off). Grey line—not irradiated
