Fig. 3
From: Macrophages are exploited from an innate wound healing response to facilitate cancer metastasis

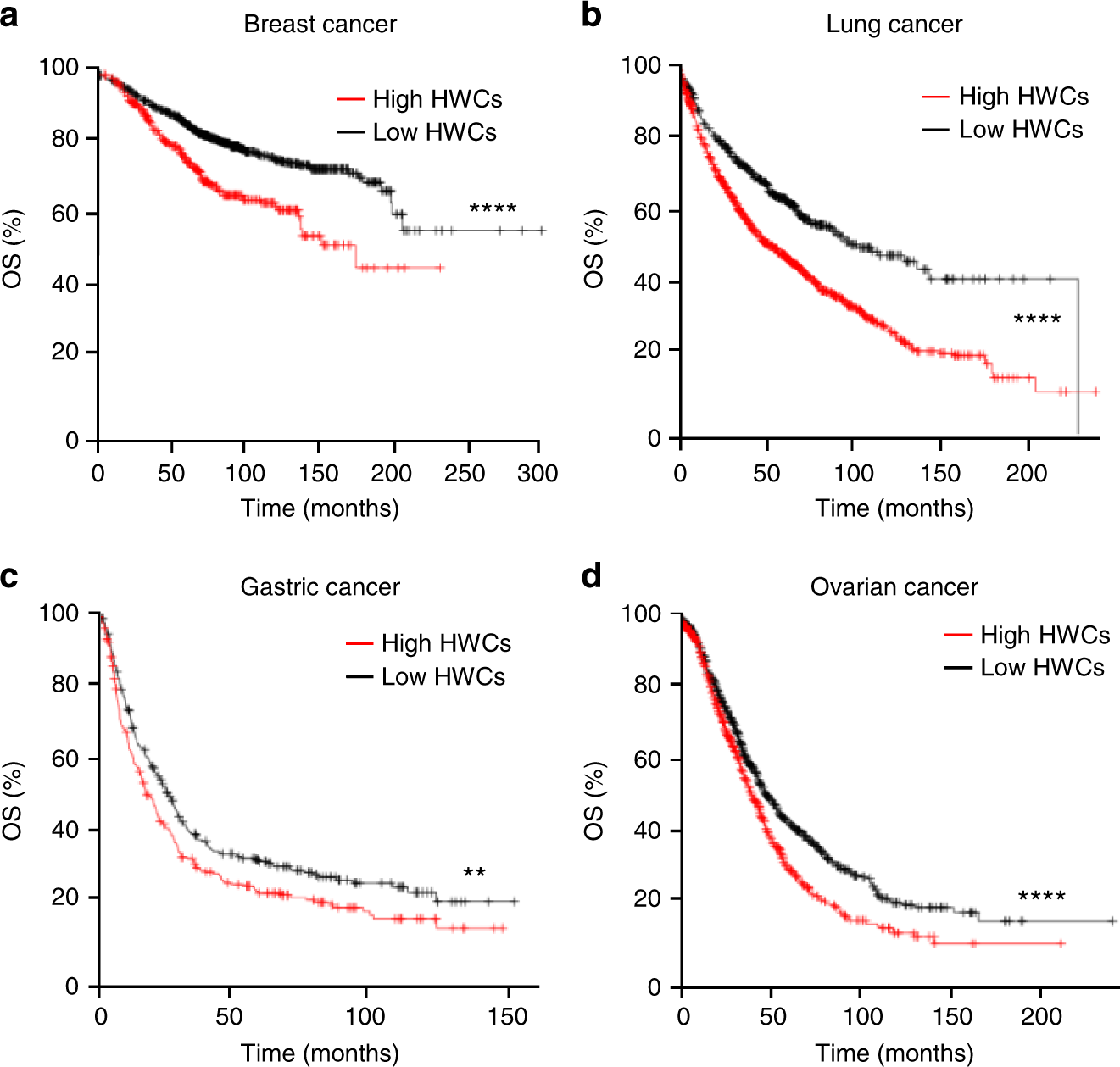

The presence of a healing wound-like cytokine response is associated with poor prognosis in human cancers. Kaplan–Meier survival curves showing overall survival (OS) with high (red) and low (black) tumour expression of HWCs (SPP1, IL1B and IL6) for patients with a breast cancer (n = 996 in HWCslo group and 406 in HWCshi group), b lung cancer (n = 622 in HWCslo group and 1304 in HWCshi group), c gastric cancer (n = 313 in HWCslo group and 280 in HWCshi group) and d ovarian cancer (n = 843 in HWCslo group and 813 in HWCshi group). **P ≤ 0.01, ****P ≤ 0.0001
