From: Phosphatidylserine exposure mediated by ABC transporter activates the integrin signaling pathway promoting axon regeneration

Fig. 3

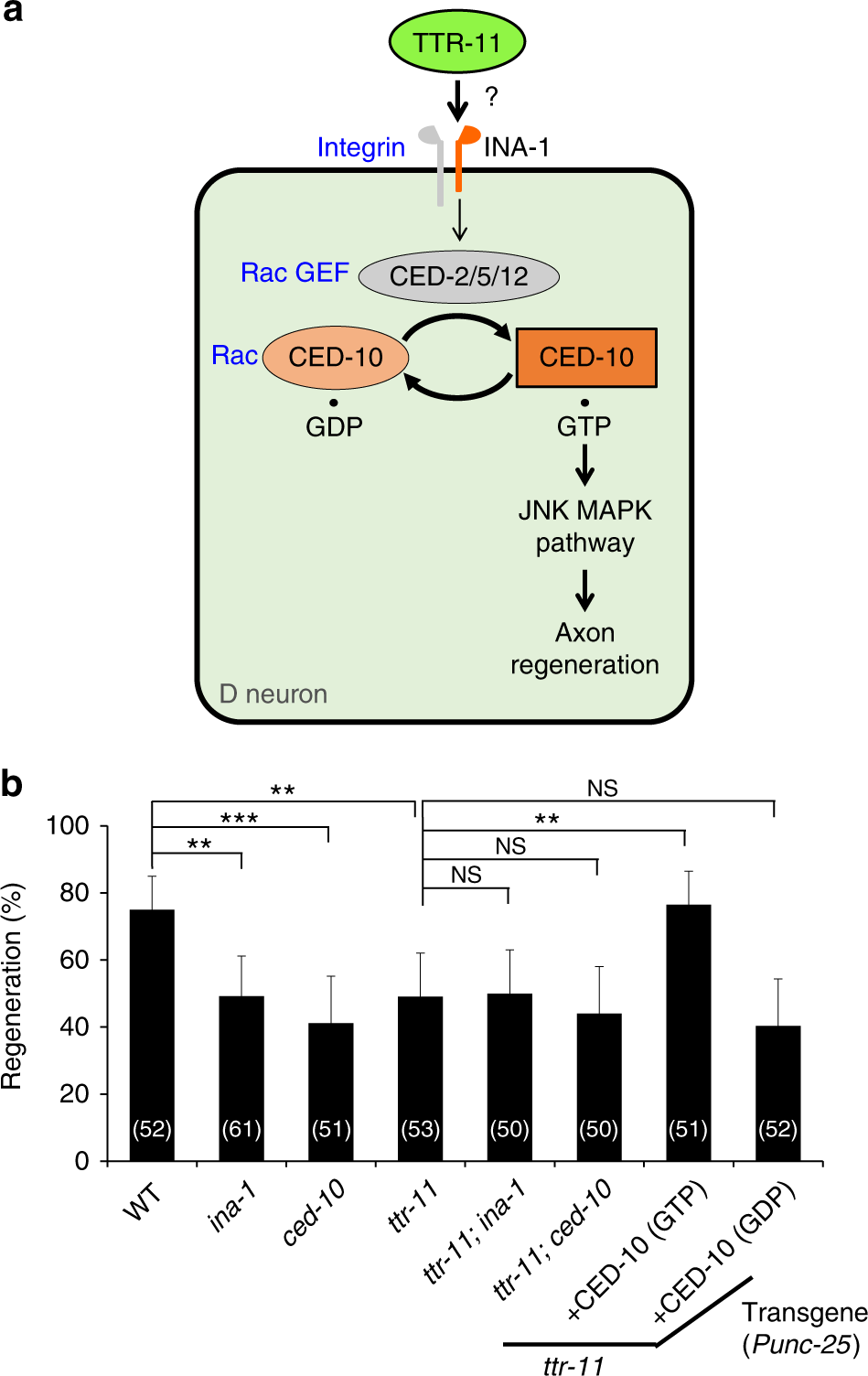

TTR-11 functions in the INA-1–CED-10 pathway. a Schematic diagram of the INA-1–CED-10 pathway regulating axon regeneration. GEF GDP-GTP exchange factor, CED-10(GTP) GTP-binding form of CED-10, and CED-10(GDP) GDP-binding form of CED-10. b Percentages of axons that initiated regeneration 24 h after laser surgery in the L4 stage. The number (n) of axons examined are shown. Error bars indicate 95% CI. **P < 0.01, ***P < 0.001 as determined by Fisher’s exact test. NS: not significant
