Fig. 2
From: De novo human genome assemblies reveal spectrum of alternative haplotypes in diverse populations

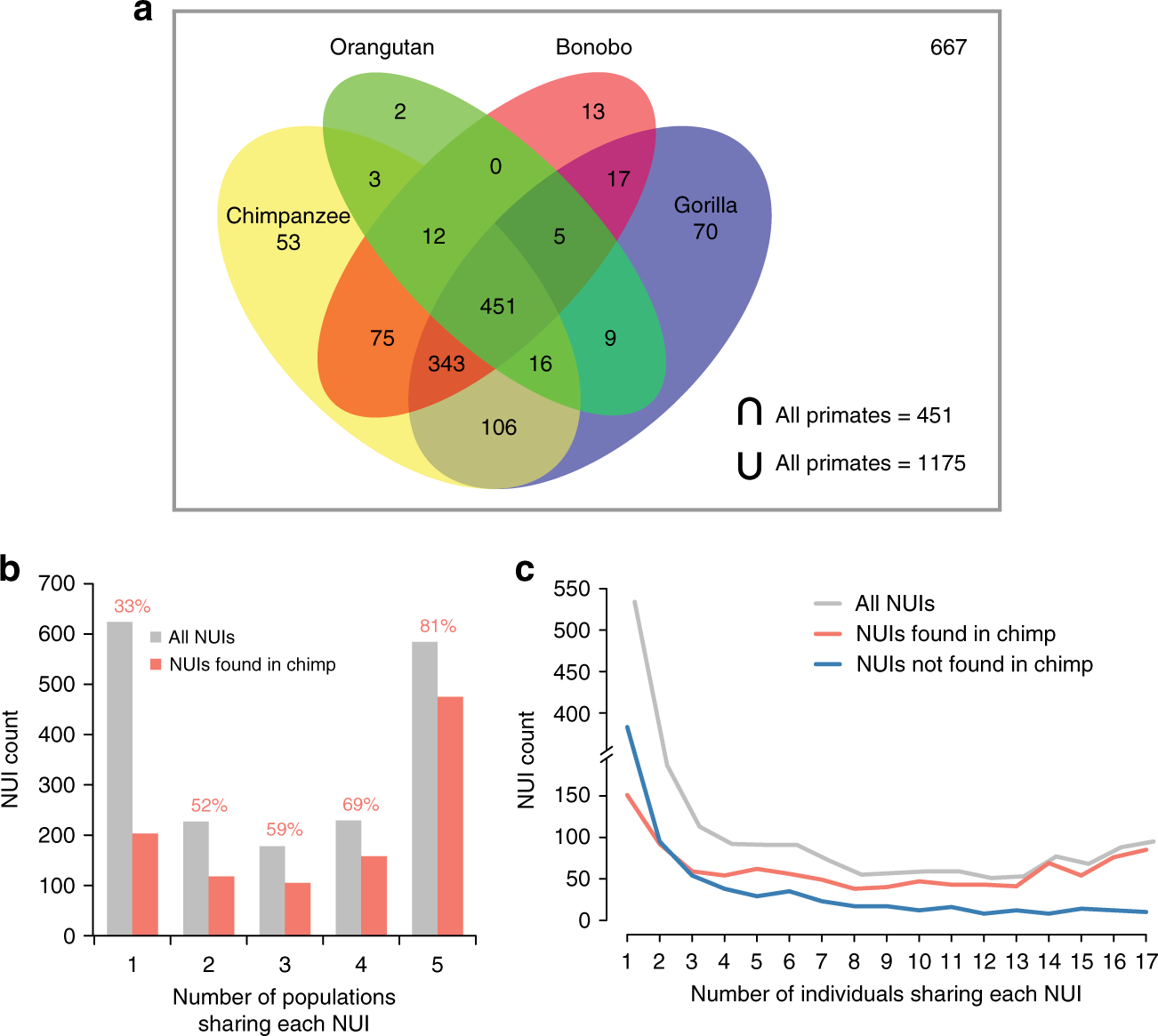

Non-reference unique insertions in non-human primates. a Venn diagram illustrating the number of NUIs found in non-human primate genomes. The gray box represents the universe, which includes 658 NUIs that were not found in any non-human primate genomes. b NUI frequency stratified based on the number of populations sharing these sequences. Frequencies are further broken down depending on whether they aligned to the chimpanzee genome. The numbers on top of the bars represent the percentages of NUIs identified in the chimpanzee genome (χ2 = 309.5, p = 9.71e−66). c As in b but at the individual-level
