From: Design principles of chiral carbon nanodots help convey chirality from molecular to nanoscale level

Fig. 2The alternative text for this image may have been generated using AI.

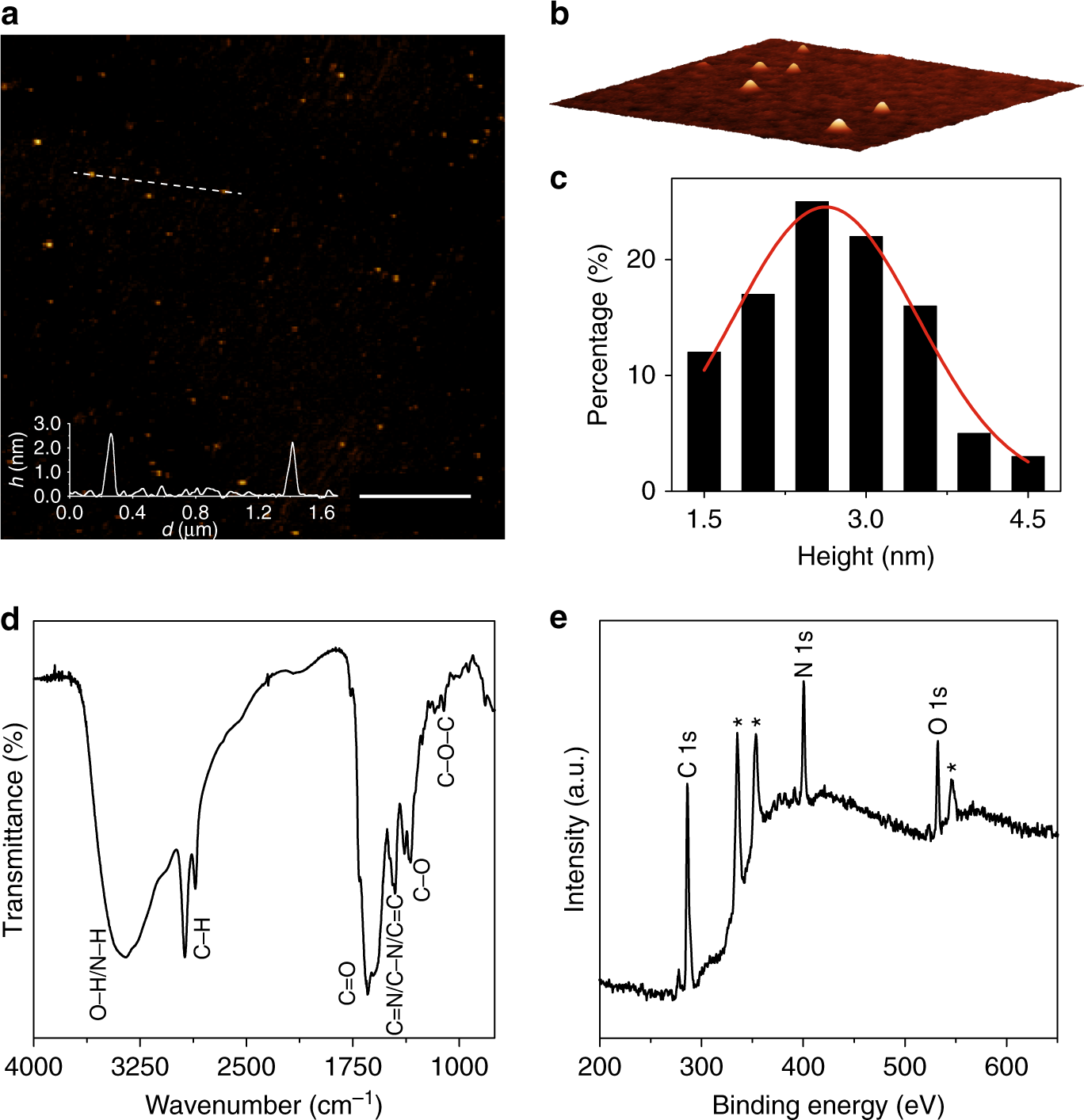

Morphological and structural characterization of CNDs-R and CNDs-S. a Tapping mode AFM (4.4 × 4.4 μm) from a drop-cast CNDs-R aqueous solution on a mica substrate (scale bar, 1 μm), inset is the height profile along the dashed line; b three-dimensional close-up AFM image (0.5 × 0.5 μm) of CNDs-R; c size histogram with curve fit using a Gaussian model; d FT-IR spectrum of CNDs-S; e XPS survey spectrum of CNDs-S showing the C1s, N1s, and O1s (deconvoluted spectra are in Supplementary Figure 4, *from Au substrate Au4d3, Au4d5, and Au4p)
