Fig. 4 | Nature Communications

Fig. 4

From: Zigzag carbon as efficient and stable oxygen reduction electrocatalyst for proton exchange membrane fuel cells

Fig. 4The alternative text for this image may have been generated using AI.

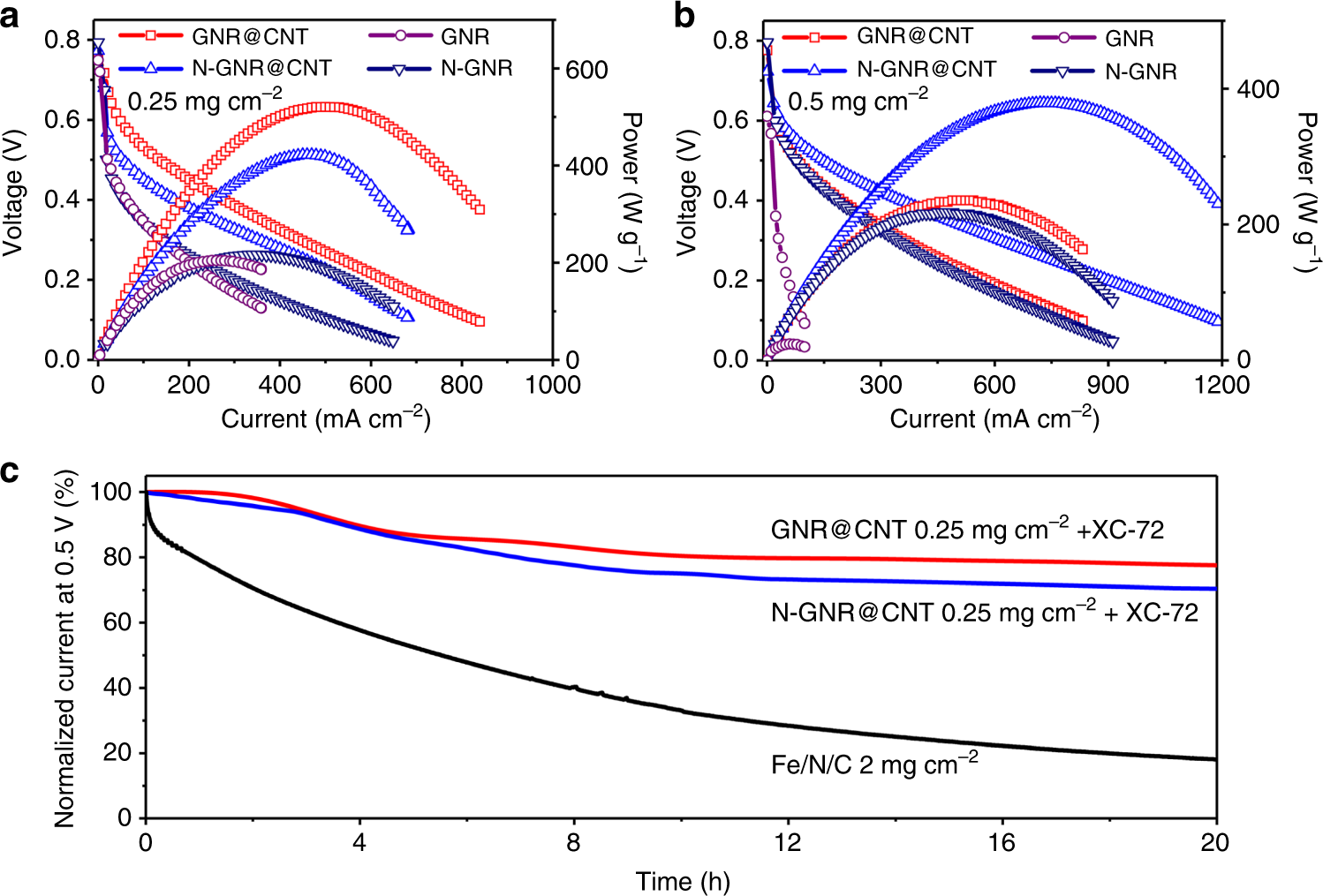

Proton exchange membrane fuel cell evaluation. Polarization and power density curves of graphene nanoribbons on carbon nanotubes (GNR@CNT), N-doped GNR@CNT (N-GNR@CNT), and N-doped graphene nanoribbons (N-GNR) as a function of the areal current density with cathode catalyst loading of a 0.25 mg cm−2 and b 0.50 mg cm−2 in a proton exchange membrane fuel cell (PEMFC); c stability of the indicated catalysts in PEMFC measured at 0.5 V. The absolute current densities before durability tests (at 100%) were 136, 80 and 1216 mA cm−2 for graphene nanoribbons on carbon nanotube (GNR@CNT), nitrogen-doped catalyst (N-GNR@CNT), and reference catalyst iron-nitrogen-carbon (Fe/N/C), respectively. Weight ratio of Nafion/catalyst/carbon black (XC-72) = 5/1/4. Cell: 80 °C; H2/O2: 80 °C, 100% relative humidity, 2 bar back pressure

Back to article page
