From: Contrasting effects on deep convective clouds by different types of aerosols

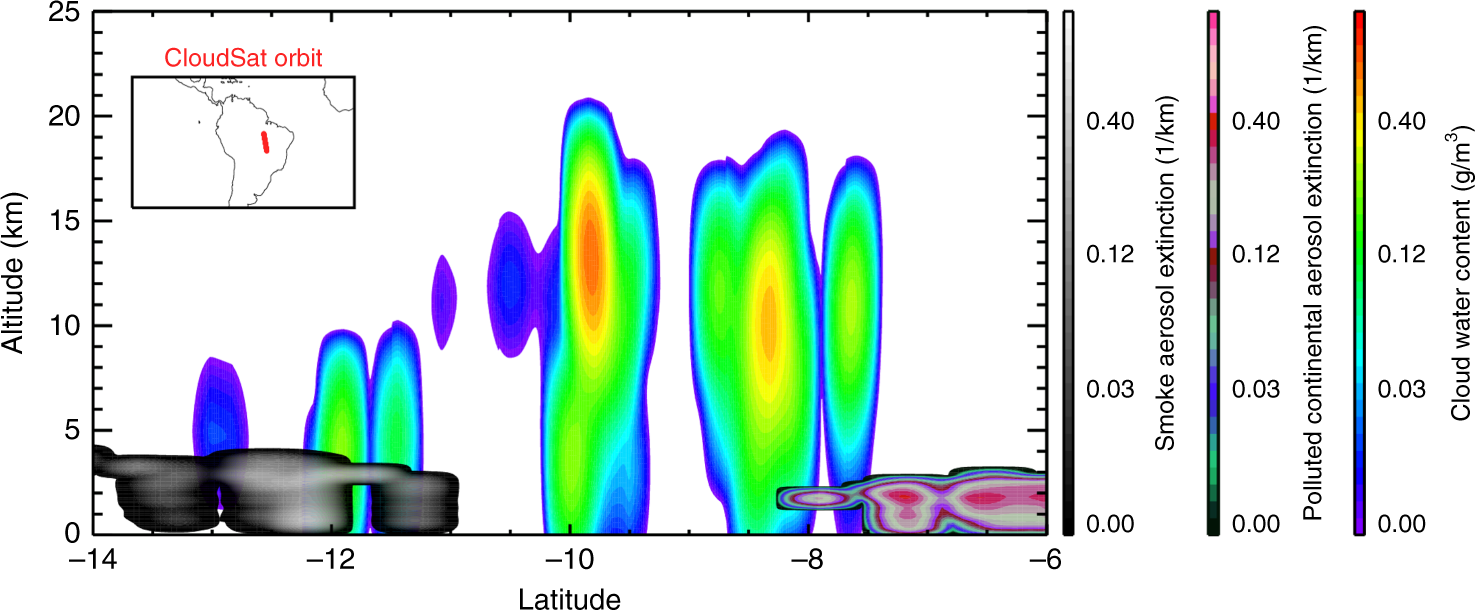

Curtain plot of clouds in different aerosol environments. Curtain plot of CloudSat/CALIPSO cloud water content and collocated CALIPSO smoke and polluted continental aerosol extinction profiles along an orbit over South America on 25 October 2007. The image is smoothed by a 12 km running window along the satellite tracks
