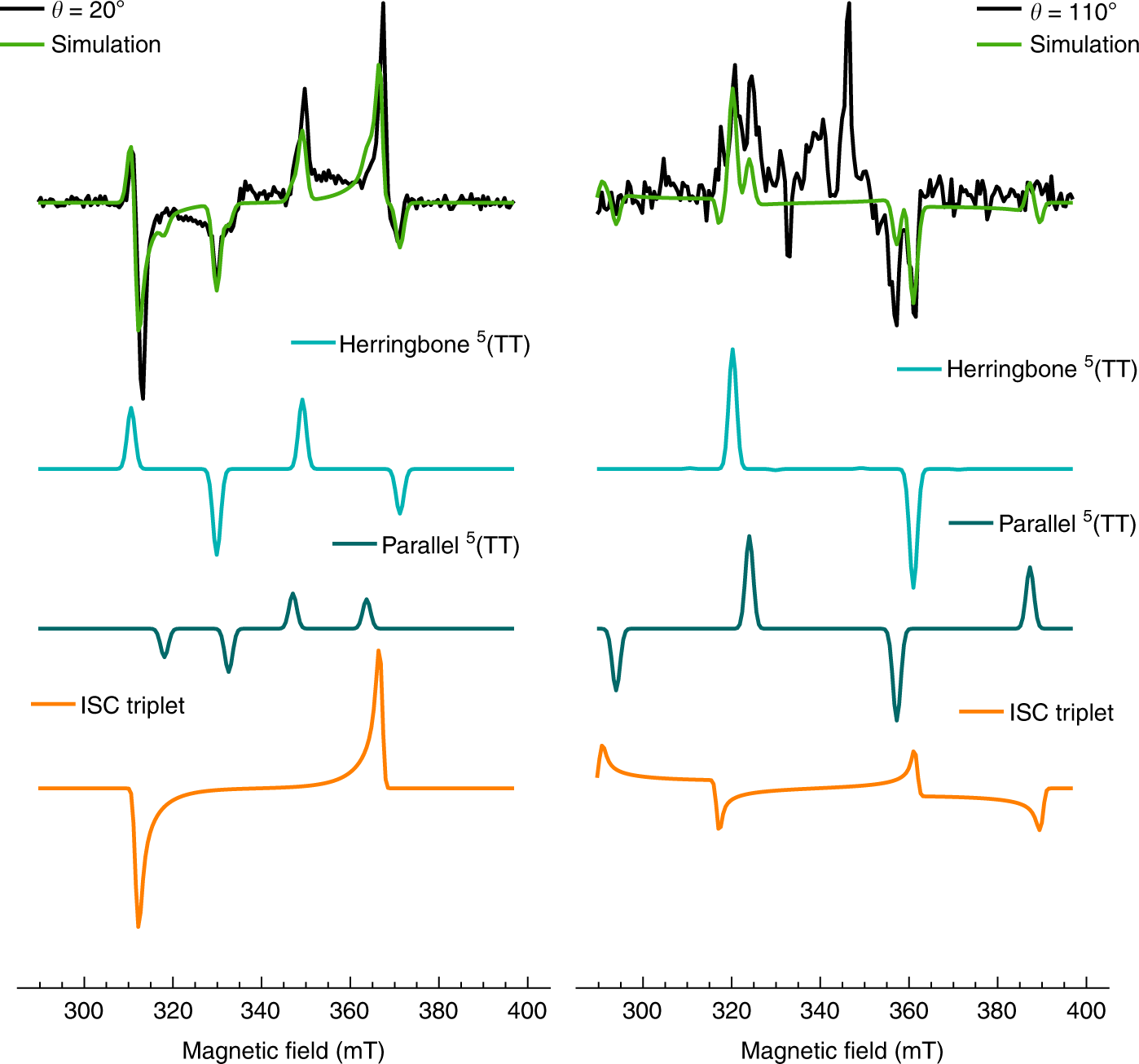

Fig. 6
From: Identifying triplet pathways in dilute pentacene films
Evidence of multiple spin species resulting from singlet fission at room temperature. The experimental spectra (black) can be fitted (green) with a superposition of simulated peaks for the herringbone (cyan) and parallel (teal) dimer arrangement of strongly coupled triplets as well as the intersystem crossing triplet (orange). For the 110° orientation, the additional peaks that are not simulated are due to in-plane disorder, as verified using an S = 2 fit with an ordering parameter shown in Supplementary Fig. 7. Spectral slices were taken at the maximum signal, time = 500 ns
