Fig. 4

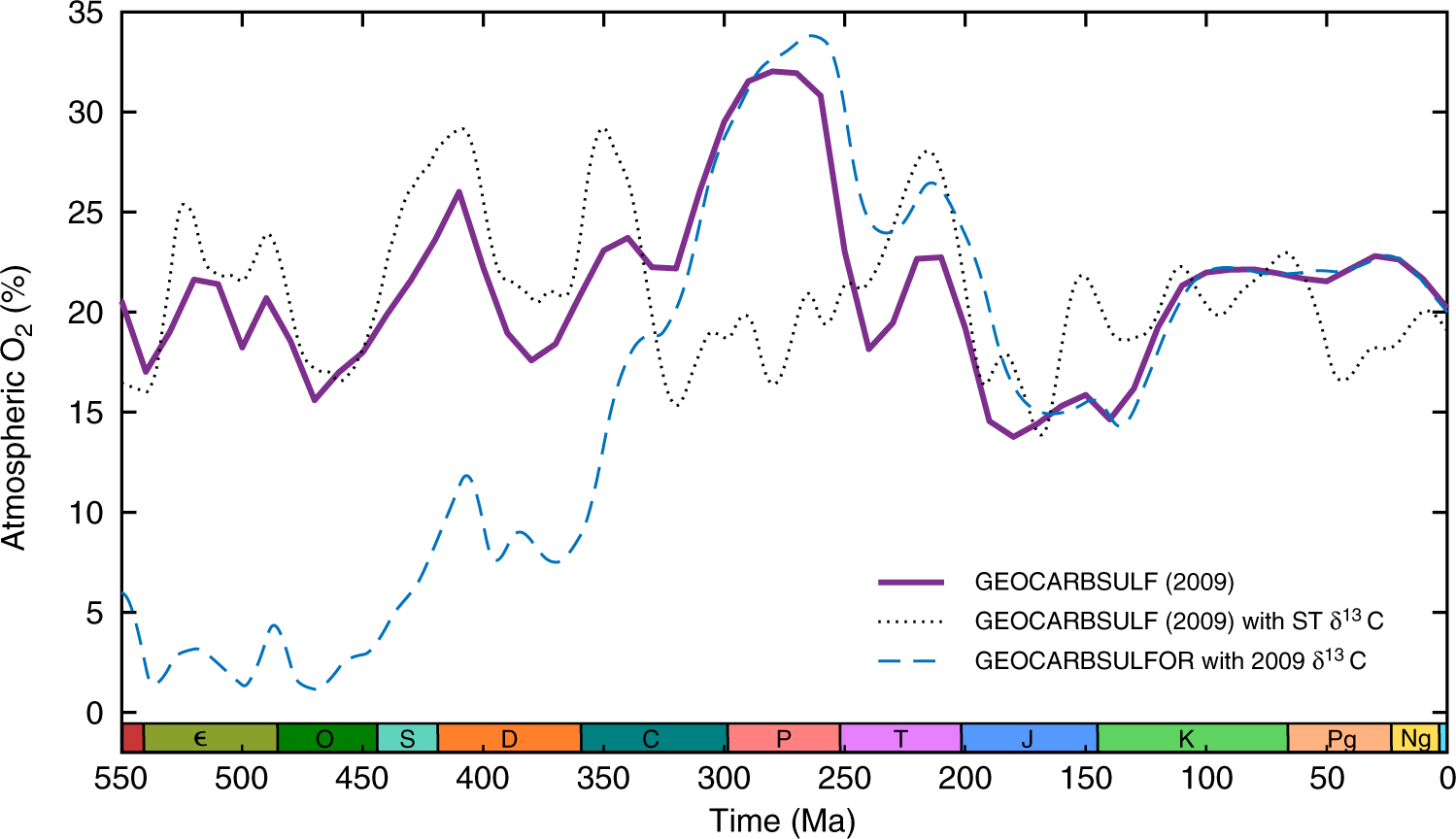

Sulphur cycle versus carbon isotope modifications. The purple line is the original GEOCARBSULF pO2 prediction21, the black dotted line is the original GEOCARBSULF model but with the δ13C record updated to use data from Saltzman and Thomas48, and the blue dashed line is GEOCARBSULFOR but with the isotope data from the original GEOCARBSULF model
