From: Direct electric field imaging of graphene defects

Fig. 3

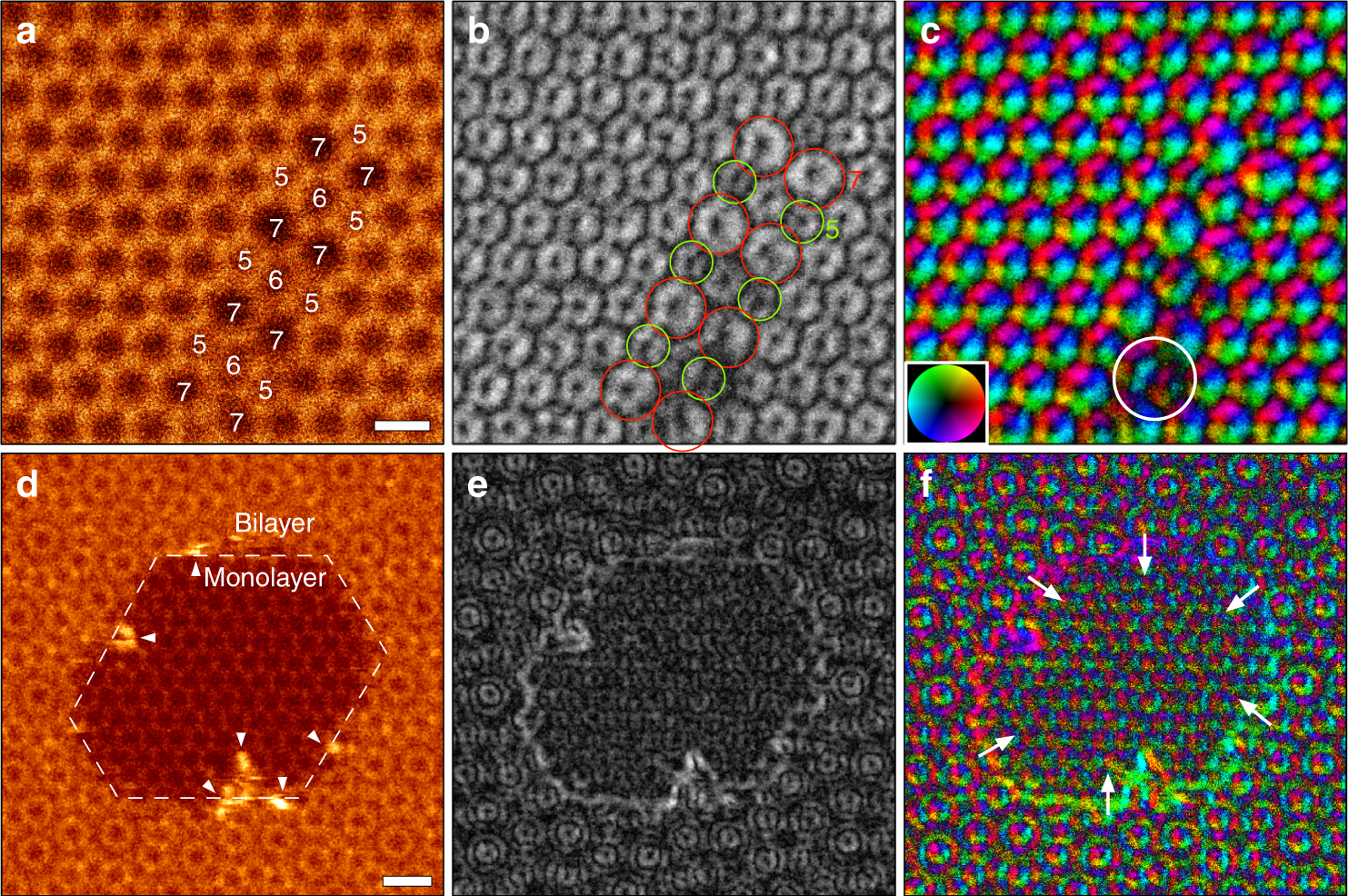

Atomic-resolution ADF and electric field maps at defects in graphene. a, d ADF-STEM images (512 × 512, 40 μs/pixel), b, e electric field strength maps, c, f electric field vector maps obtained from Stone–Wales defect and nanopore regions, respectively. The contrast ranges are (b) 0–25 V, (e) 0–45 V. The white arrows in (f) indicate the direction of the electric field. The scale bars in (a), (d) are 3 Å and 5 Å, respectively
