Fig. 3
From: Relativistic and resonant effects in the ionization of heavy atoms by ultra-intense hard X-rays

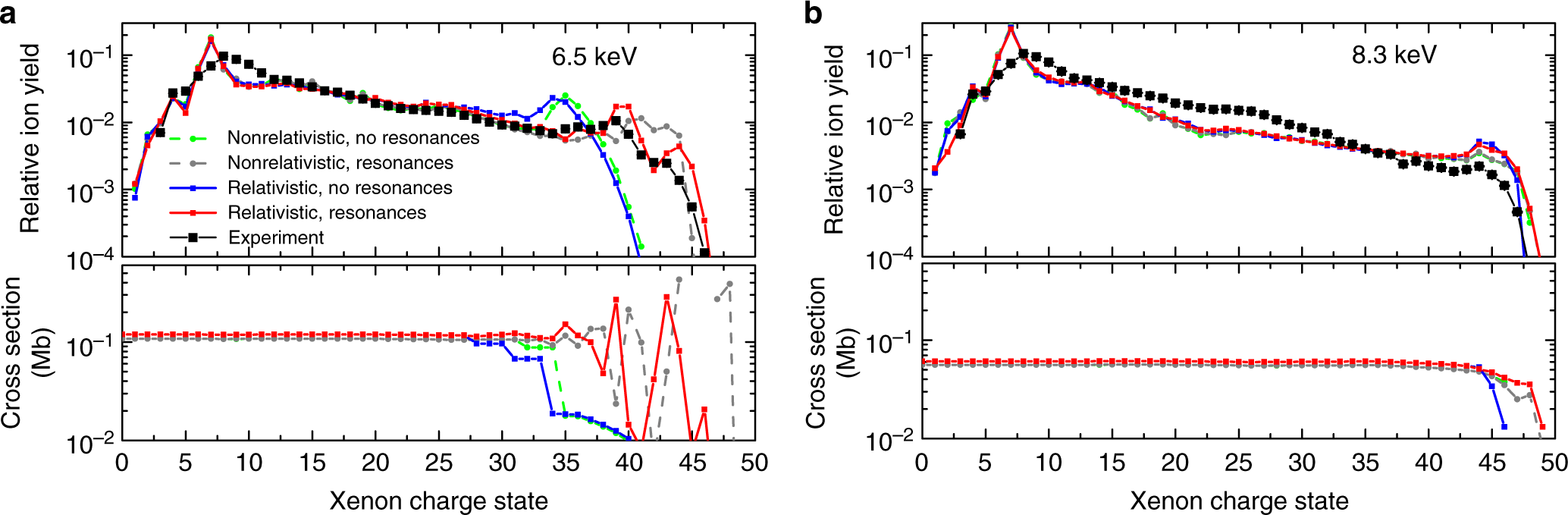

Xe charge state distributions at higher photon energies. Experimental and calculated Xe charge state distributions at a 6.5 keV and b 8.3 keV photon energy. The calculated total photoabsorption cross-sections of a ground state Xe ion for 1% bandwidth are plotted in the lower panels. The charge state distributions and photoabsorption cross-sections were calculated with and without consideration of relativistic effects and resonances. The sum of all charge states is normalized to one. The statistical uncertainties for both theory and experiment are smaller smaller than the size of the symbols
