Fig. 4
From: Deciphering synergetic core-shell transformation from [Mo6O22@Ag44] to [Mo8O28@Ag50]

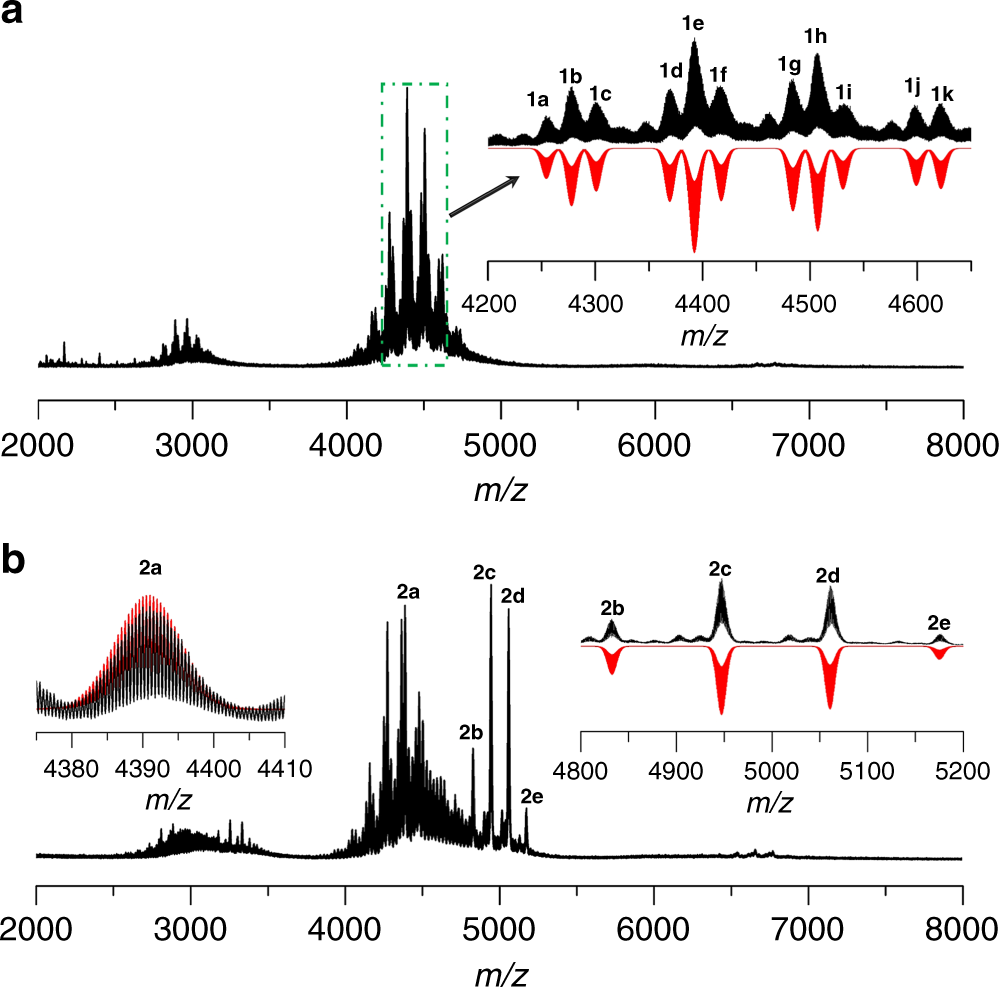

ESI-MS. a Positive ion mode ESI-MS of the crystals of SD/Ag44 dissolved in dichloromethane. Inset: The zoom-in mass spectrum of experimental (black line) and simulated (red line) isotope patterns for each labeled species. b Positive ion mode ESI-MS of the crystals of SD/Ag50 dissolved in dichloromethane. Insets: The zoom-in mass spectrum of experimental (black lines) and simulated (red lines) isotope patterns for each labeled species
