Fig. 4
From: Interactions between callose and cellulose revealed through the analysis of biopolymer mixtures

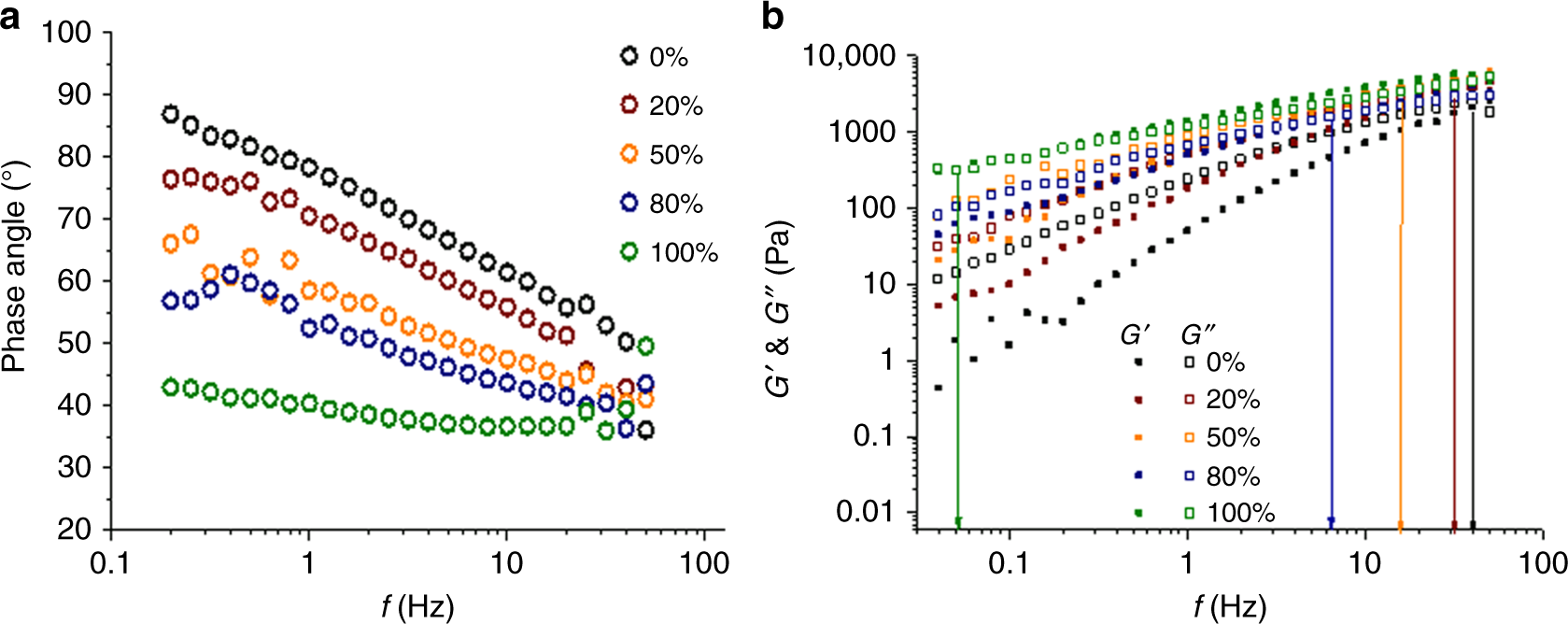

Viscoelastic properties of the cellulose-callose mixtures in ionic liquid solution at 25 °C. a represents changes in the phase angle (δ, open circles) as a function of frequency (f) for the five callose concentrations. b Changes in the viscous (G”, open squares) and elastic (G’, filled squares) components as a function of frequency at different percentage (%) of callose in the mixtures. Graph elements in black correspond to 0% callose, in dark-red to 20%, orange to 50%, blue to 80% and green to 100%. The arrows indicate the approximate frequency where G” and G’ overlap
