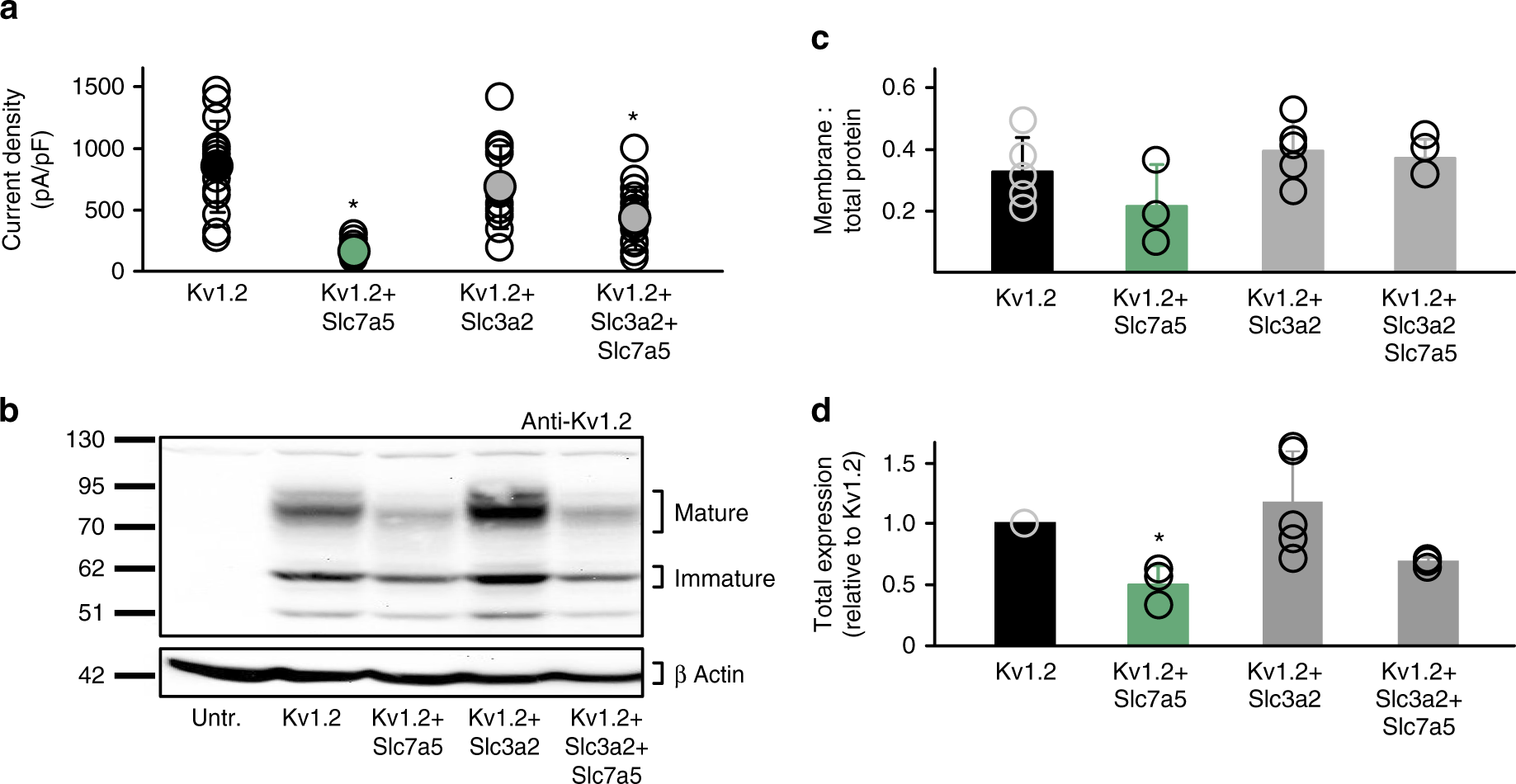

Fig. 2
Slc7a5 alters Kv1.2 expression and current density. a Combinations of Kv1.2, mCherry-Slc7a5, and mEGFP-Slc3a2 were expressed in ltk-mouse fibroblasts. Current density was measured at +60 mV (pulsed from a holding potential of −80 mV). Transfection ratios were (with Kv1.2 maintained constant): Kv1.2:Slc7a5 (2:1); Kv1.2:Slc3a2 (1:1); Kv1.2:Slc7a5:Slc3a2 (2:1:2), n = 14–19 cells. A non-parametric Kruskal–Wallis ANOVA on ranks test, followed by Dunn’s post hoc was used to compare treatments to WT Kv1.2, (* indicates p < 0.05 relative to WT Kv1.2 current density). b Exemplar anti-Kv1.2 western blot of ltk-mouse fibroblasts transfected as in a except Kv1.2 + Slc7a5+Slc3a2 (1:1:1) for 72 h. c Densitometry measurements of the cell surface:total Kv1.2 protein. No significant differences were detected between groups (n = 3–5). d Densitometry of total Kv1.2 protein, normalized to WT Kv1.2 alone. ANOVA followed by Dunnett’s post hoc test was used to compare treatments to WT Kv1.2 (* indicates p < 0.05 relative to WT Kv1.2 transfection). The data from individual experiments are superimposed on bars that depict mean ± S.D. (n = 3–5)
