From: CYP6AE gene cluster knockout in Helicoverpa armigera reveals role in detoxification of phytochemicals and insecticides

Fig. 4

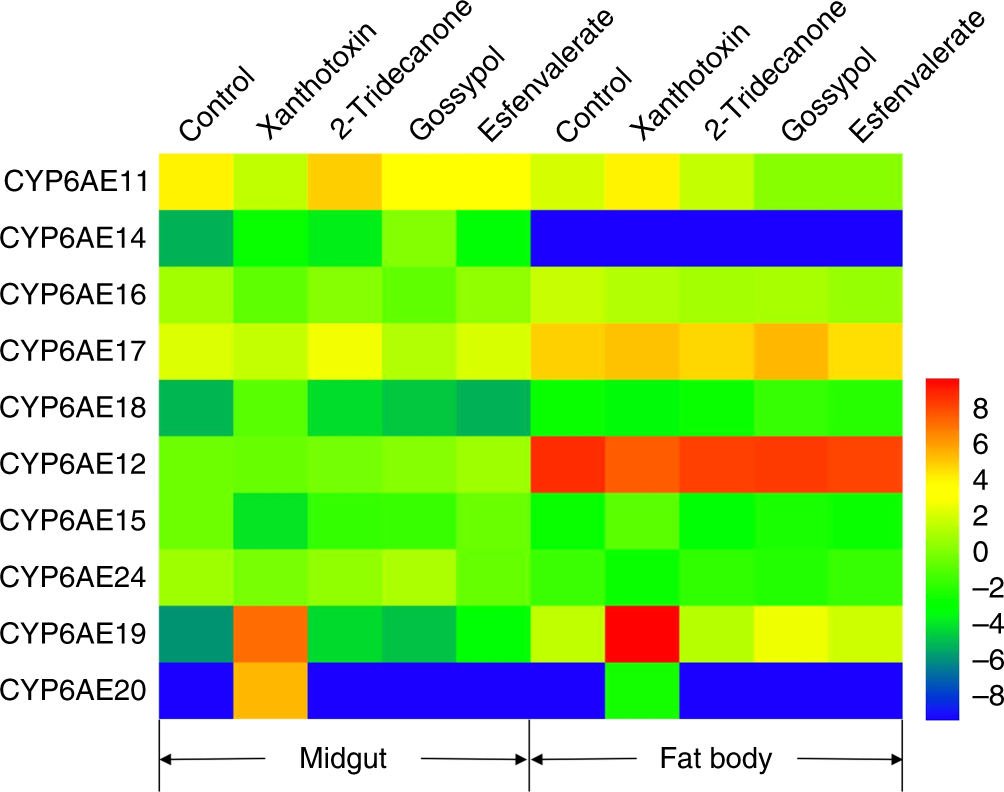

Effects of diverse xenobiotics on mRNA levels of CYP6AE subfamily genes. The midgut and fat body of the H. armigera were from the SCD strain of H. armigera. The mRNA levels were determined by RT-qPCR. Each gene has 5 biological repeats. The heat map was generated using the log2-transformed expression ratios relative to the midgut mRNA expression of CYP6AE12 in the control group. Blue: low expression levels. Red: high expression levels
