Fig. 10

From: Real-time determination of enantiomeric and isomeric content using photoelectron elliptical dichroism

Fig. 10

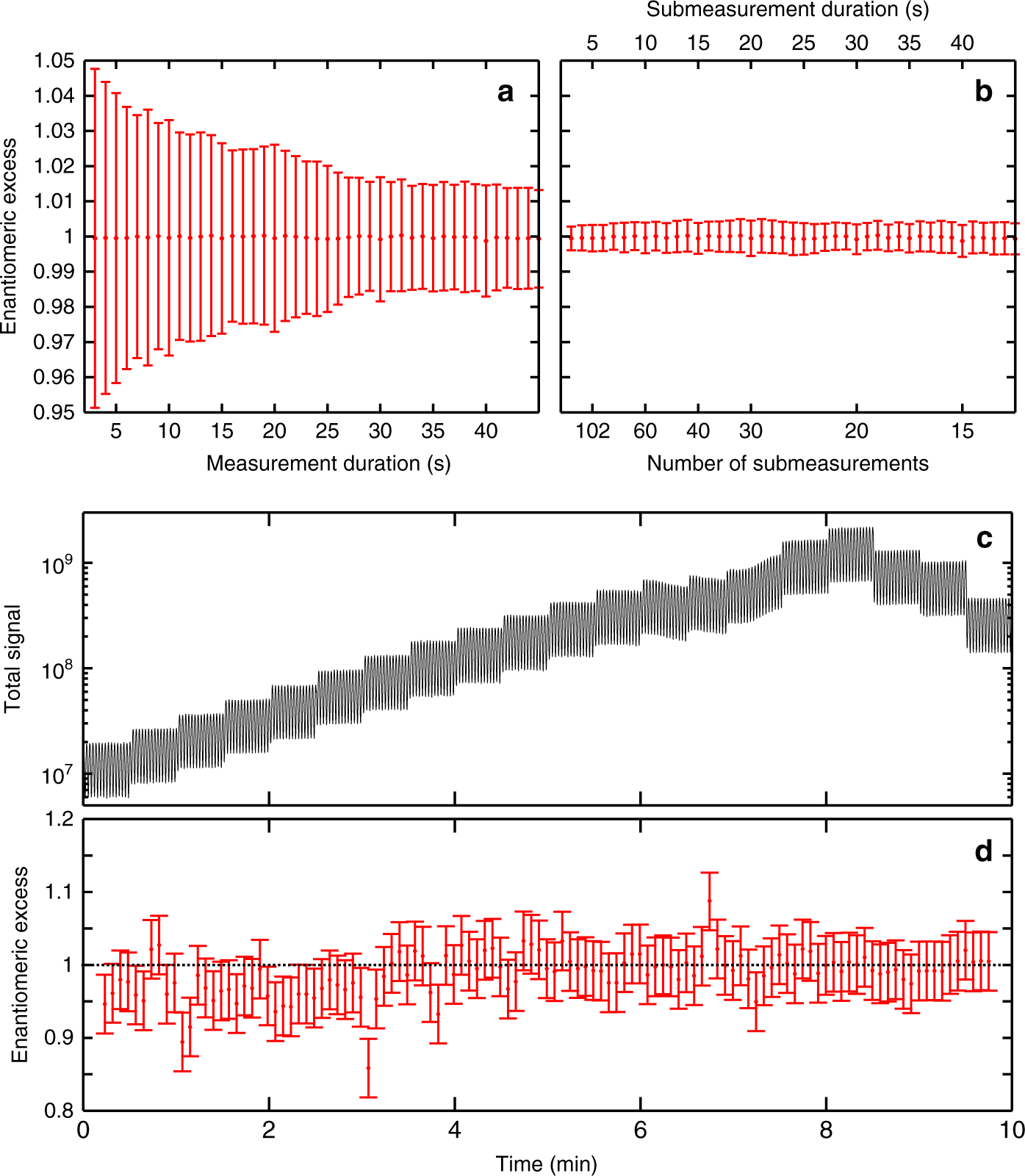

Statistical analysis of the enantiomeric excess measurement by PEELD. a The 95% confidence interval of the enantiomeric excess of a pure (+)-fenchone sample, as a function of the duration of the measurement. b Results of a 10 min ee measurement by statistical analysis of sets of submeasurements, as a function of the number and duration of the submeasurements. c, d Total signal and enantiomeric excess measured while increasing the gain of the microchannel plate detector every 30 s
