From: Defect engineered bioactive transition metals dichalcogenides quantum dots

Fig. 6

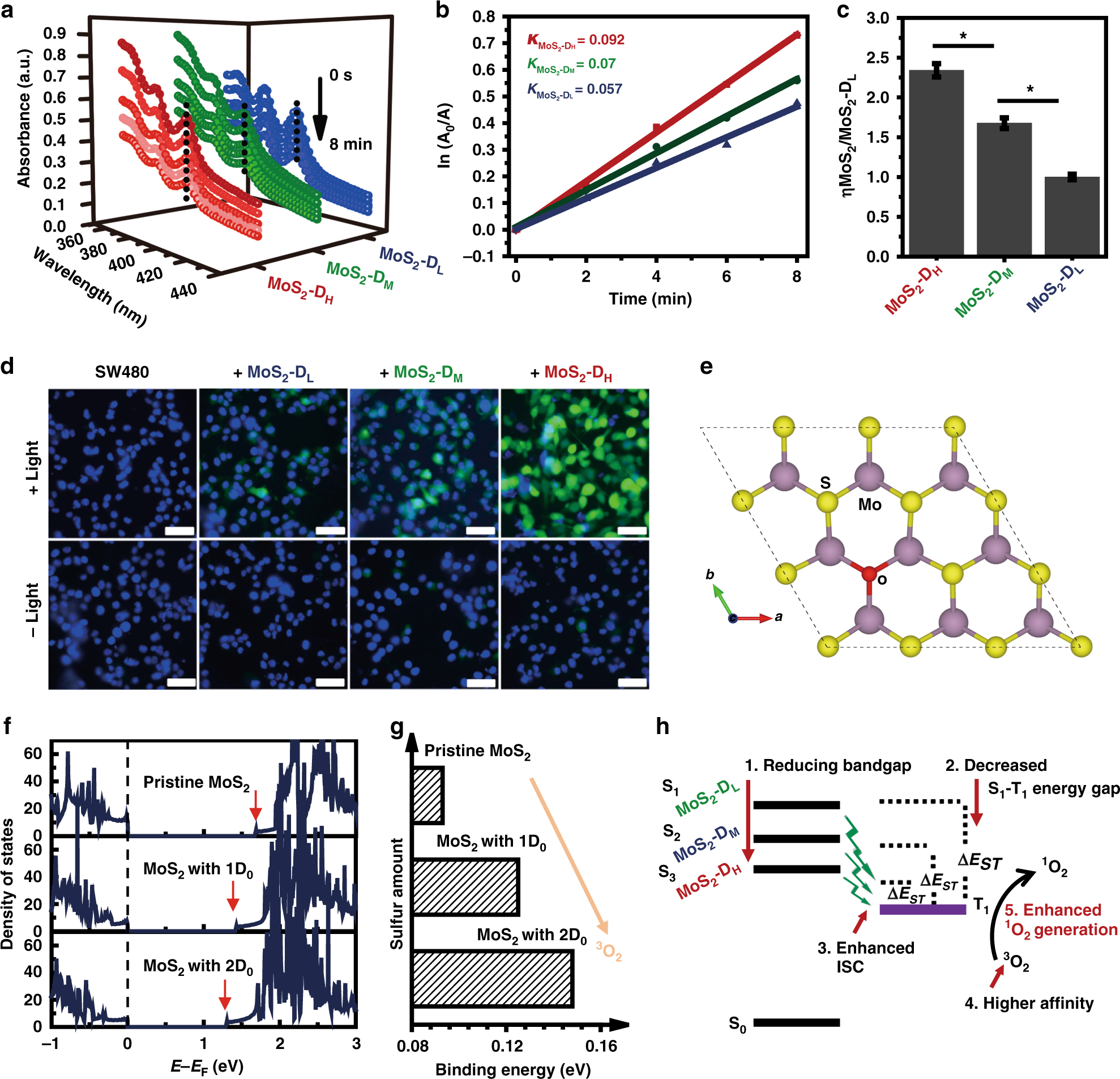

Positive correlation between sulfur defects and photodynamic efficiency in QDs. a Absorption spectra of three kinds of MoS2 QDs in the presence of ABDA under light irradiation (0.1 W cm-2, 8 min). b Typical decomposition rate of the photosensitizing process, where A0 is the absorbance of initial absorbance of ABDA and A is the absorbance of ABDA under light irradiation at different time points (Full data plots can be found as Supplementary Figure 19). c Relative 1O2 quantum yield of two MoS2 QDs groups relative to MoS2-DL QDs. Mean ± SD, n = 4, Student’s t-test, p* < 0.05. d Detection of ROS generation at cellular level in colon cancer cell line, SW480 by intracellular ROS indicator H2DCFH-DA. Scale bar: 50 μm. e Structure illustration for the substitution of oxygen for sulfur within MoS2 lattices. f Calculated density of states of MoS2 QDs show the defects reduce the bandgap. g More sulfur defects induce stronger binding affinity of 3O2 to MoS2. h Proposed defect related 1O2 generation mechanism of MoS2 QDs
