Fig. 3

From: Controlling the fluorescence and room-temperature phosphorescence behaviour of carbon nanodots with inorganic crystalline nanocomposites

Fig. 3The alternative text for this image may have been generated using AI.

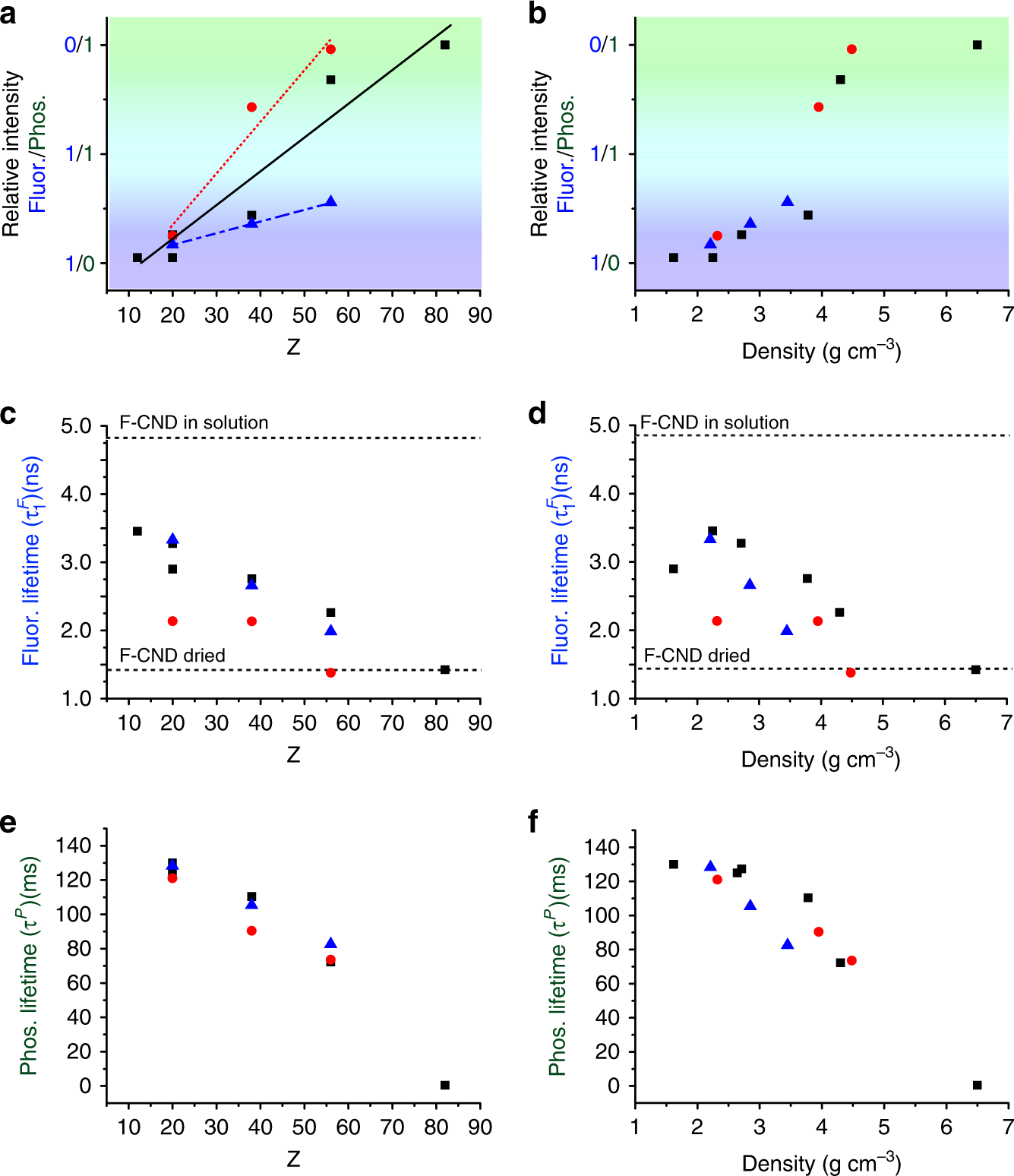

The relationship between host structure and photoluminescent (PL) behaviour in folic acid-derived carbon nanodot (FF-CND)/host nanocomposites. Plots of relative room temperature phosphorescence (RTP) intensity values (a, b), fluorescence (\(\tau _1^F\)) lifetimes derived from fluorescence lifetime imaging microscopy (FLIM) decay curves (c, d) and phosphorescence (τP) lifetimes derived from video stroboscopy decay curves (e, f) of F-CND-rich carbonates (black square/solid line), sulphates (red circle/dotted line), and oxalates (blue triangle/dashed line) against cation Z (a, c, e) and density (b, d, f) of the host mineral phase. The background colour in a and b represents approximately the steady-state PL (SS-PL) observed from photographs obtained from composites under UV (365 nm) excitation. Values for \(\tau _1^F\) for F-CND aqueous solution and dried F-CND are given on c and d
