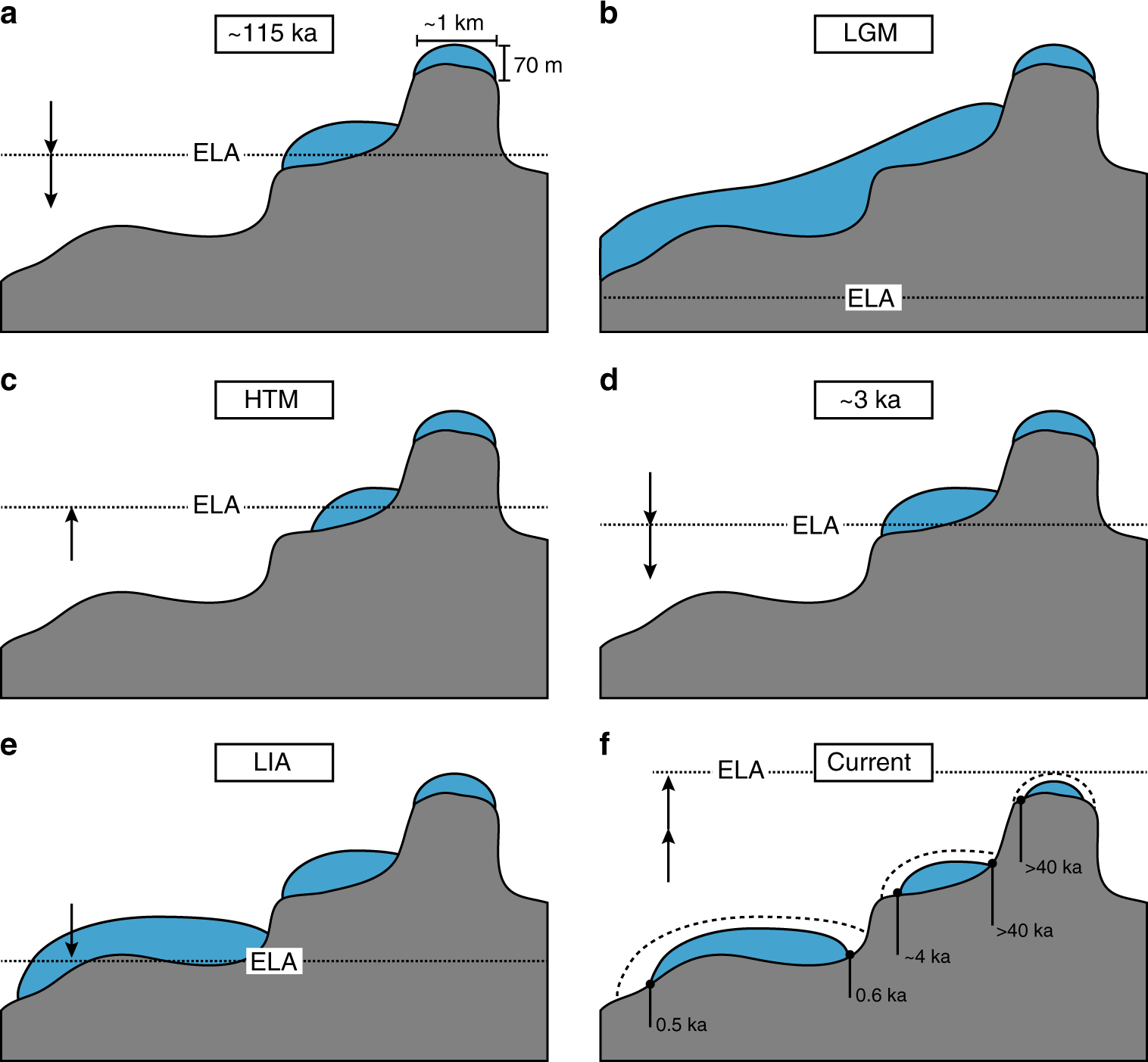

Fig. 4
Ice cap response to rapid equilibrium line altitude (ELA) rise exposes landscapes of varying ages. Conceptual time series of ELA change illustrating the threshold behavior of pedestal ice caps that reach and maintain their maximum dimensions even when the ELA is relatively high (a). During the LGM, much of the landscape is covered with ice but additional growth of pedestal ice caps is limited by topography (b). As ELA rises during the deglaciation and early Holocene, many low elevation ice caps disappear, intermediate elevation ice caps recede, whereas pedestal ice caps maintain their size (c). Renewed descent of ELA during the Holocene permits lower elevation ice caps to reform (d, e). The anomalous rise of the ELA over the past century has been so rapid that ice caps are no longer in equilibrium with climate; consequently, the thickest ice caps, often at lower elevation than pedestal ice caps, take longest to disappear, revealing a range of Holocene plant 14C ages (f)
