Fig. 3
From: Oxidation induced strain and defects in magnetite crystals

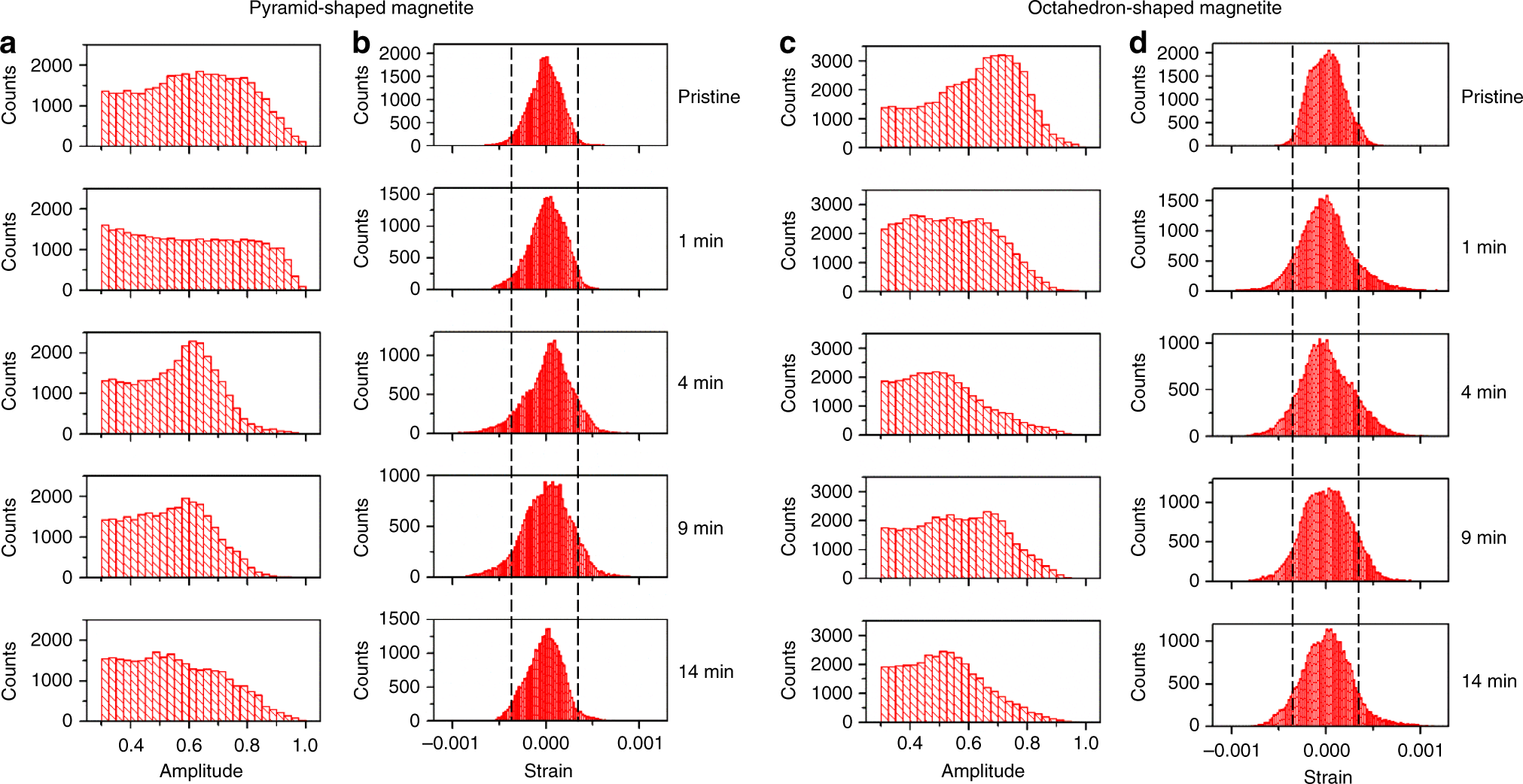

Statistical distribution of amplitude and strain of the pyramid- and octahedron-shaped magnetite crystals from Figs. 1 and 2. The amplitude distributions between 0.3 and 1.0 are plotted in a, c with corresponding strain (b, d) distributions. Lines on the strain plots indicate the threshold values (−0.00035 and 0.00035) used for plotting the 3D high strain structures shown in Figs 1c and 2c
